Description

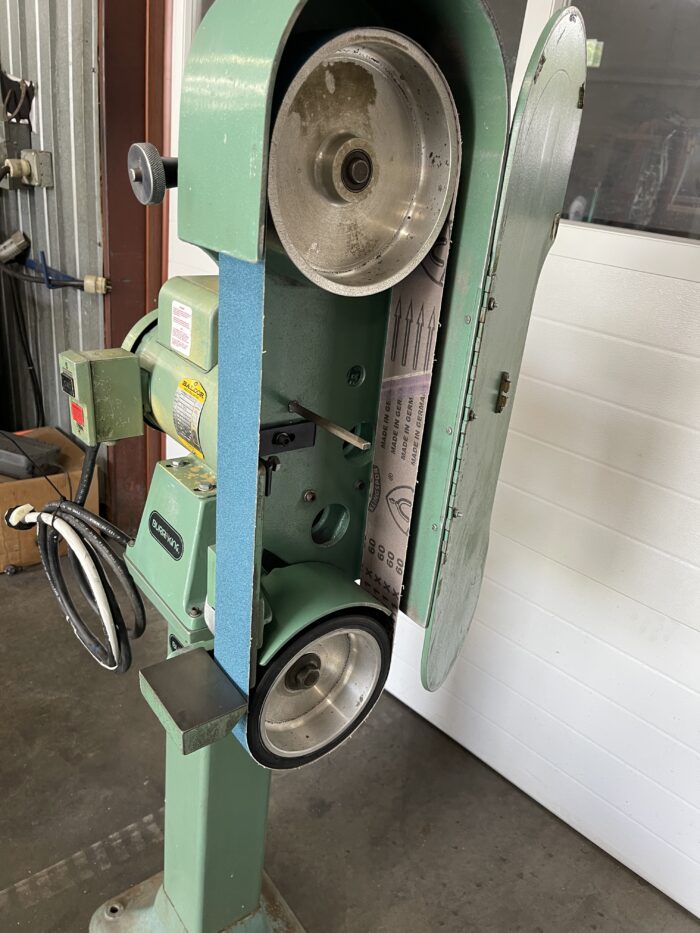

BURR KING Model 960-250 2.5 x 60 Two Wheel Belt Grinder

Burr King’s family of two wheel grinders provides vigorous contact wheel, workrest, and platen grinding in a frame design that pivots to ideal work positions. These machines are frequently selected as tool post grinders, roll grinders, and for fixturing into centerless grinding applications.

Available in easily adjusted variable speed and aggressive single speed,  2.5″ x 60″ belt size.

Model 960-250 shown with optional magnetic starter.

Model 960-250 has a standard 60″ belt up to 2.5″ wide and can be bench or pedestal mounted.

• Contact wheel, platen and work support grinding
• Adjustable belt tension
• Positive belt tracking
• Quick belt change
• Up to 8000 SFPM belt speed standard
• Compact footprint friendly to “cell” manufacturing
• Adapts for “tool post” or “on center” grinding
• Adapts for robot mounts
• Variable speed 120/220-1 PH, and 220/440-3 PH options
• Precision machined cast aluminum frame
• OSHA compliant, enclosed guarding

Specifications:

Abrasive Belt Size: 2-1/2” x 60”

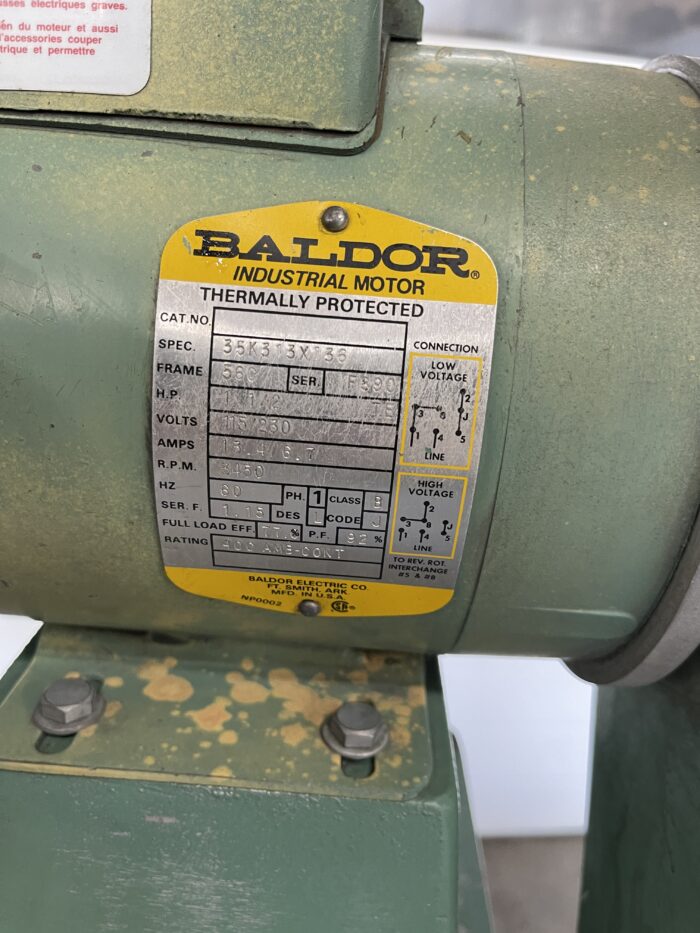

Horsepower: 1.5 HP Standard
Voltage: 120 Volt Single Phase
Abrasive Belt Speed: (up to) 8000 SFPM – Fixed or Variable Speed Available
Throat Clearance None:
Contact Wheel Dimensions: 7” x 2-1/2”
Contact Wheel Hardness 55 Durometer
Belt Tension, Quick Change Assembly Yes
Positive Belt Tracking Adjustment: Yes
Overall Height x Width x Depth: 30” x 21” x 30”
Safety Belt Guard: Yes
Base Area: 8-1/2” x 8”
Steel Backup Platen: 2-1/2” x 8”
Adjustable Workrest: Yes
Construction Cast Aluminum
Estimated Shipping Weight: 145 lbs + Stand

CONDITION: Very Good
