Description

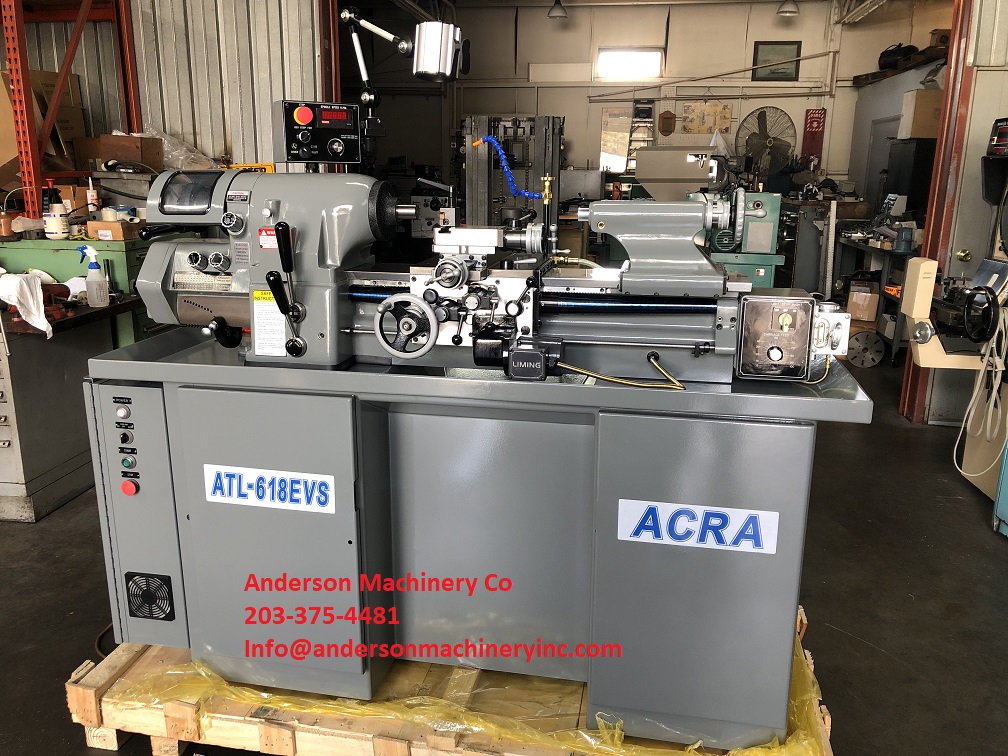

ACRA 618EVS HIGH SPEED / HIGH ACCURACY TOOL ROOM LATHE





FEATURES: Series: 618 EVS

Duel range inch / metric quick change gear box

Lever operated 5C collet closer

Automatic thread length control w/ fine adjustable stops provide for accurate thread relief.

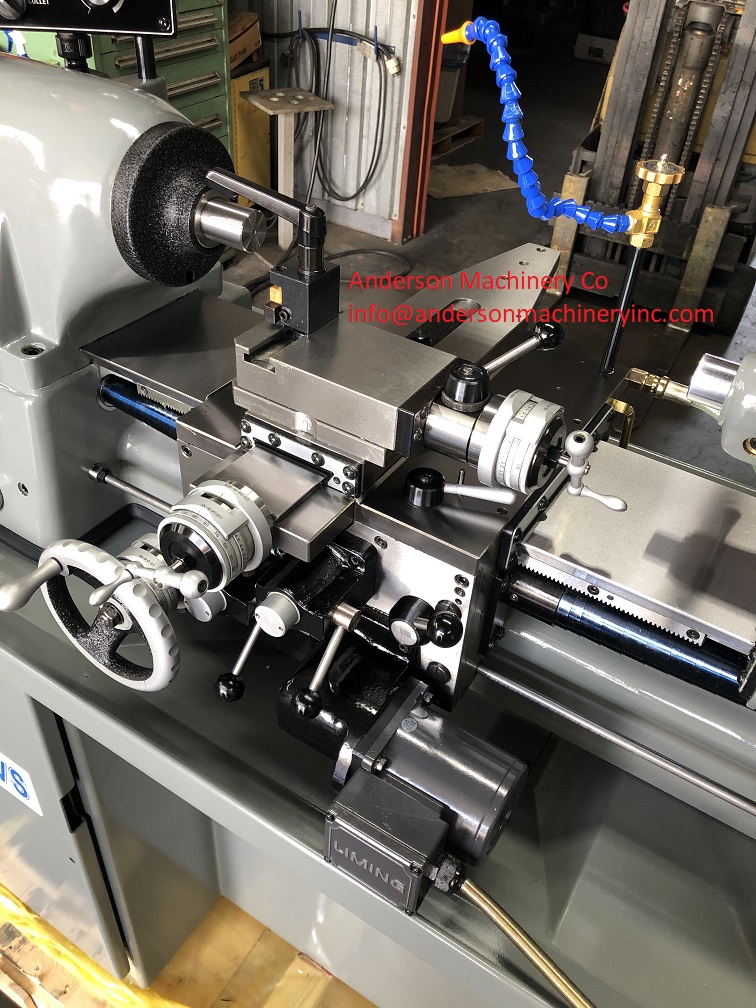

Full Bearing Carriage w/ Turcite-B slide way bearings material for extra-long life.

Solid Hardened and ground alloy tool steel bed.

Spindle is mounted in high precision preloaded contact bearing eliminated end play.



SPECIFICATIONS:

Swing Over Bed:                                            11”

Swing Over Cross Slide:                                6”

Distance Between Centers:                             18”

Spindle Speed:                                                0 ~ 4,000 (Variable)

Spindle Nose:                                                  5C 4degree Taper

Hole Thru Spindle:                                         1.250”

Main Motor:                                                    5 HP

Voltage:                                                          230V AC / 3PH.

Dimensions:                                                    73” x 30” x 67





STANDARD EQUIPMENT:

5C Lever Collet Closer                       LED Light                             Tool Holder

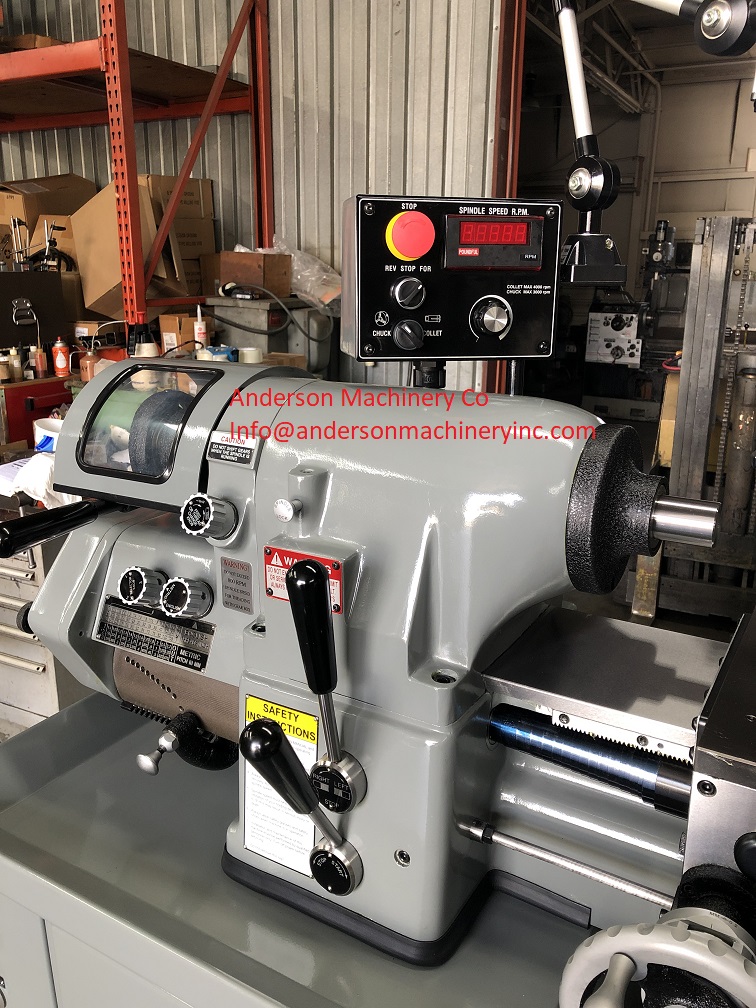

Direct Reading Spindle Speeds          Special Tools                           One Shot Lube

Inch/ Metric Threading                       Coolant System                       4 Way Rapid TraverseElectromagnetic Brake

(Standard 1 Year MFG Parts Warranty)





PRICE: FOB, CA……………..$36,000.00







OPTIONAL ACCESSORIES:

NewAll DRO 2 Axis DRO                                                                 $3,500.00

Pratt Burnard 3 Jaw Chuck – Adjust Tru w/ Back Plate                    POR

Indication Carriage Stop ( No Gauge) ( T-CSD-618)                               $ 200.00

Follow Rest ( T-FR-300                                                                       $ 750.00

Fixture Plate ( T-317) .                                                                          $ 350.00

Taper Turning Attachment (TL-T-01)                                                    $ 2,500.00

T-RT-108 Radius Turning Attachment                                                   $ 3,800.00

6″ 4 Jaw Scroll Chuck with Back Plate .                                                 $ 1,400.00

6″ 3 Jaw Adjust TRU Chuck With Back Plate  (Import)                          $ 1,400.00

Tool Setting Gage ( T-303) .                                                                  $ 120.00

5C Collet Fixture Plate (3-3/8″ Dia.) (T-304A)                                       $ 190.00

5C Collet Fixture Plate (4-3/8″ Dia) ( T-304B)                                       $ 215.00

Chip and Coolant Shield ( T-CS-10) .Center, with L, R Side                   $ 2,000.00

Vertical Cut-Off Slide ( LB-68-11)                                                        $ 1,500.00

Steady Rest ( T-SR-300)                                                                       $ 1,200.00

Rear Tool Holden Slide Assembly ( T-RT S-10)                                     $ 1,000.00

Double Tool Cross Slide with Bed Adaptor ( AHR68E/ CHR-68-08)       $ 3,200.00

7″ Slotted & Tapped Face Plate                                                             $ 600.00

Aloris Tool Post Set (AXA) 5 pc.                                                          $ POR

460 Volt Transformer                                                                           $600.00

Single Phase 220V                                                                                $ 150.00





Terms: Net 30

F.O.B.:  CA (freight cost in quote above)

Delivery: In stock CA
