Description

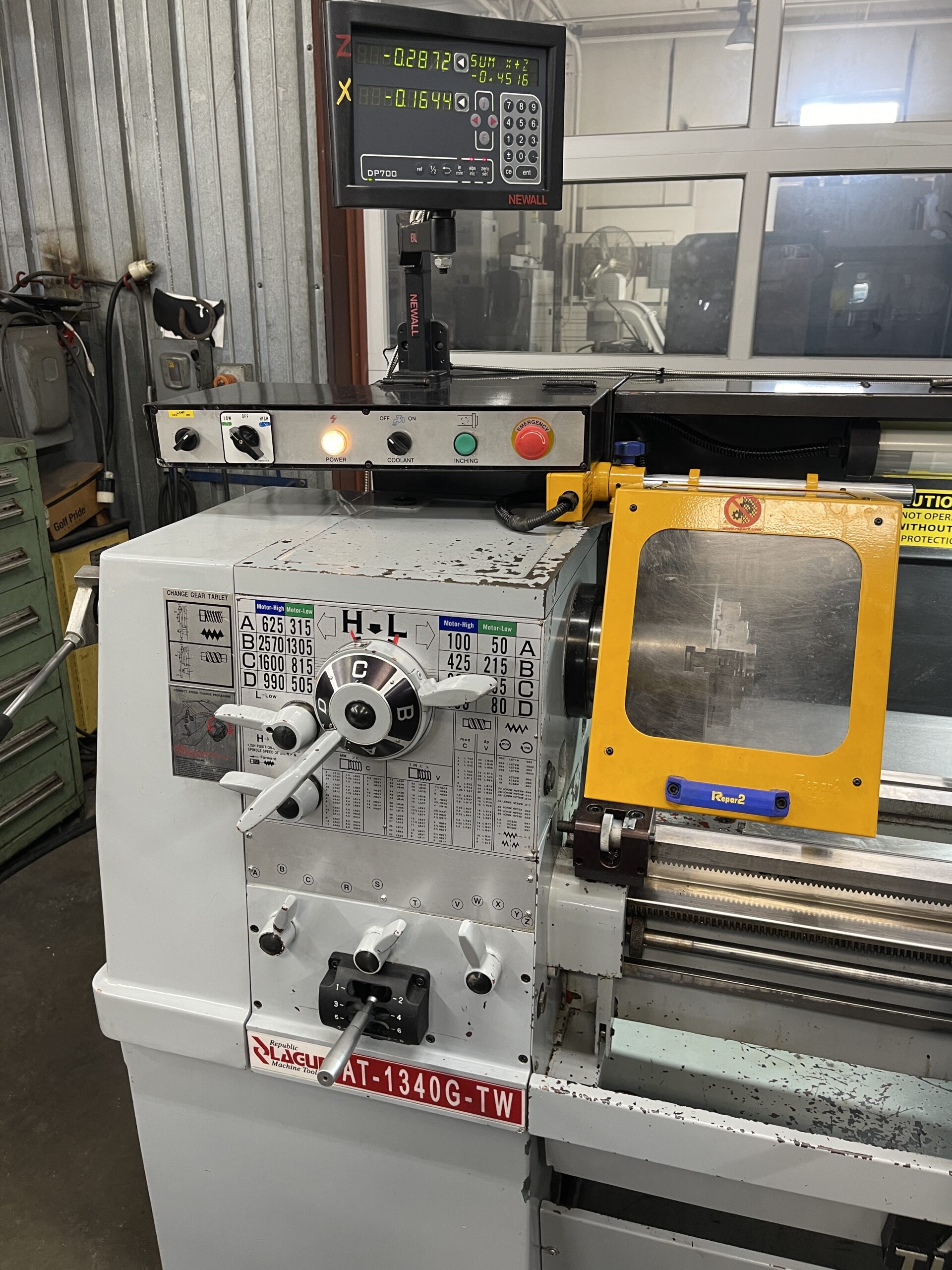

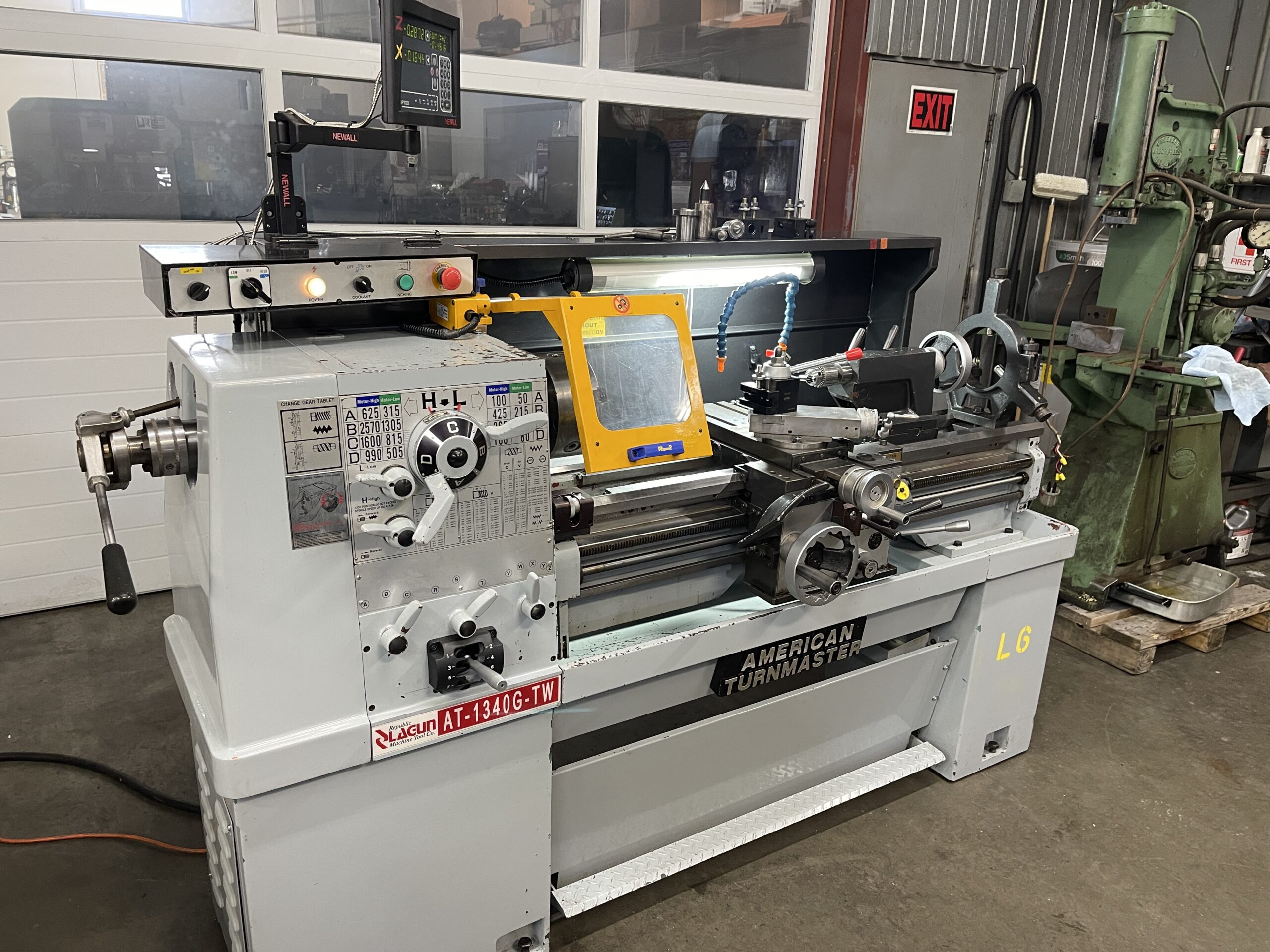

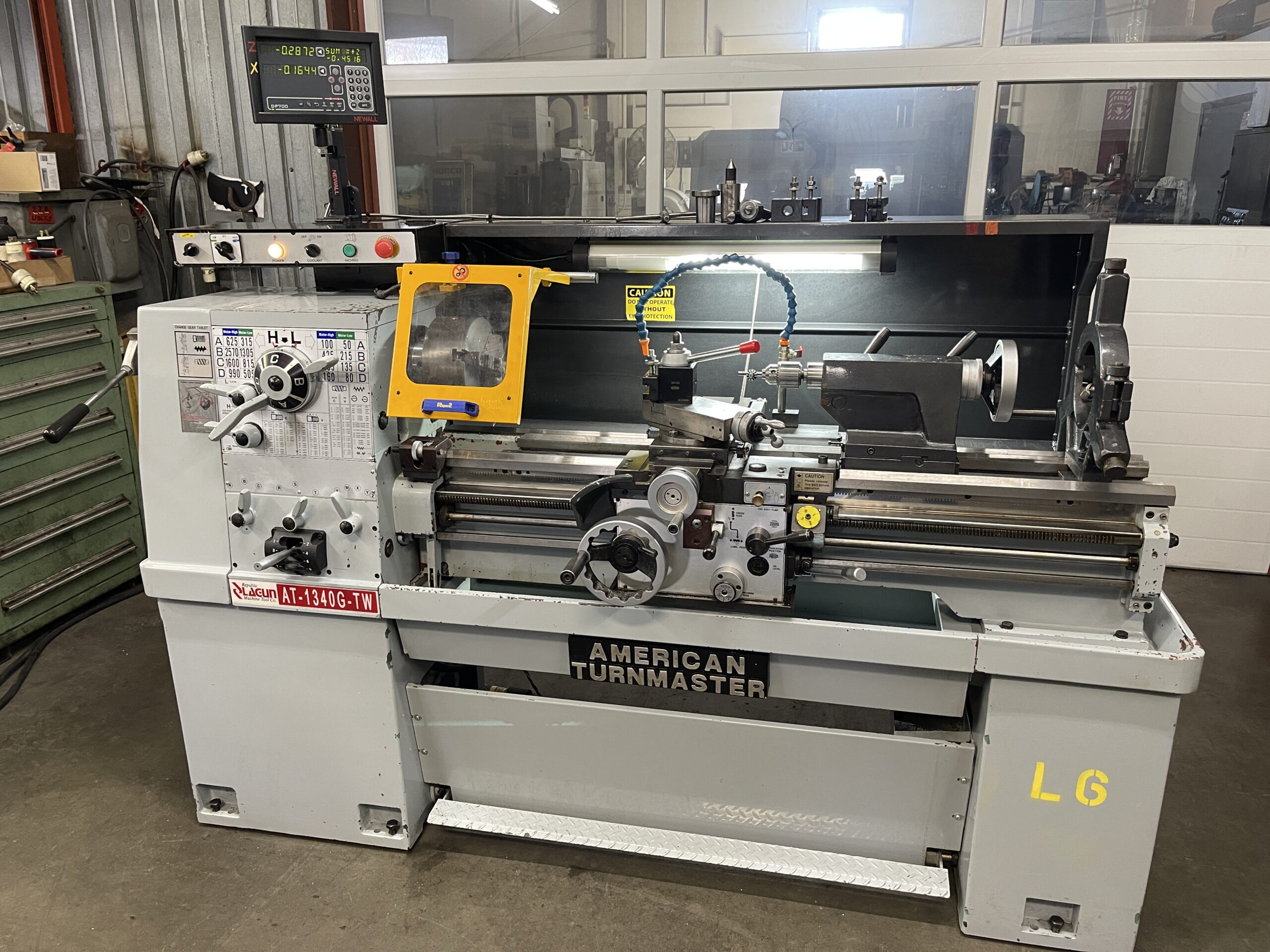

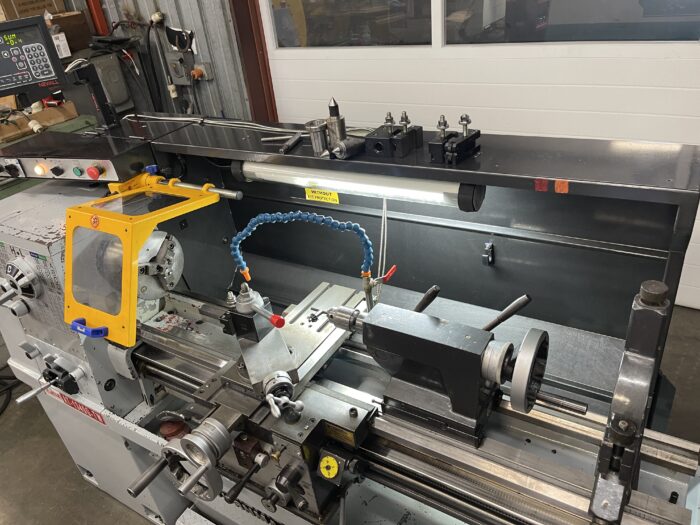

AMERICAN TURNMASTER AT-1340-G-TW (Lagun)

NEW     07/2012

FEATURES

Chip and coolant tray

Foot brake

Full length rear splash guard

Two (2) No. 3 MT centers and main spindle reduction sleeve

Lead screw protection cover

Work light

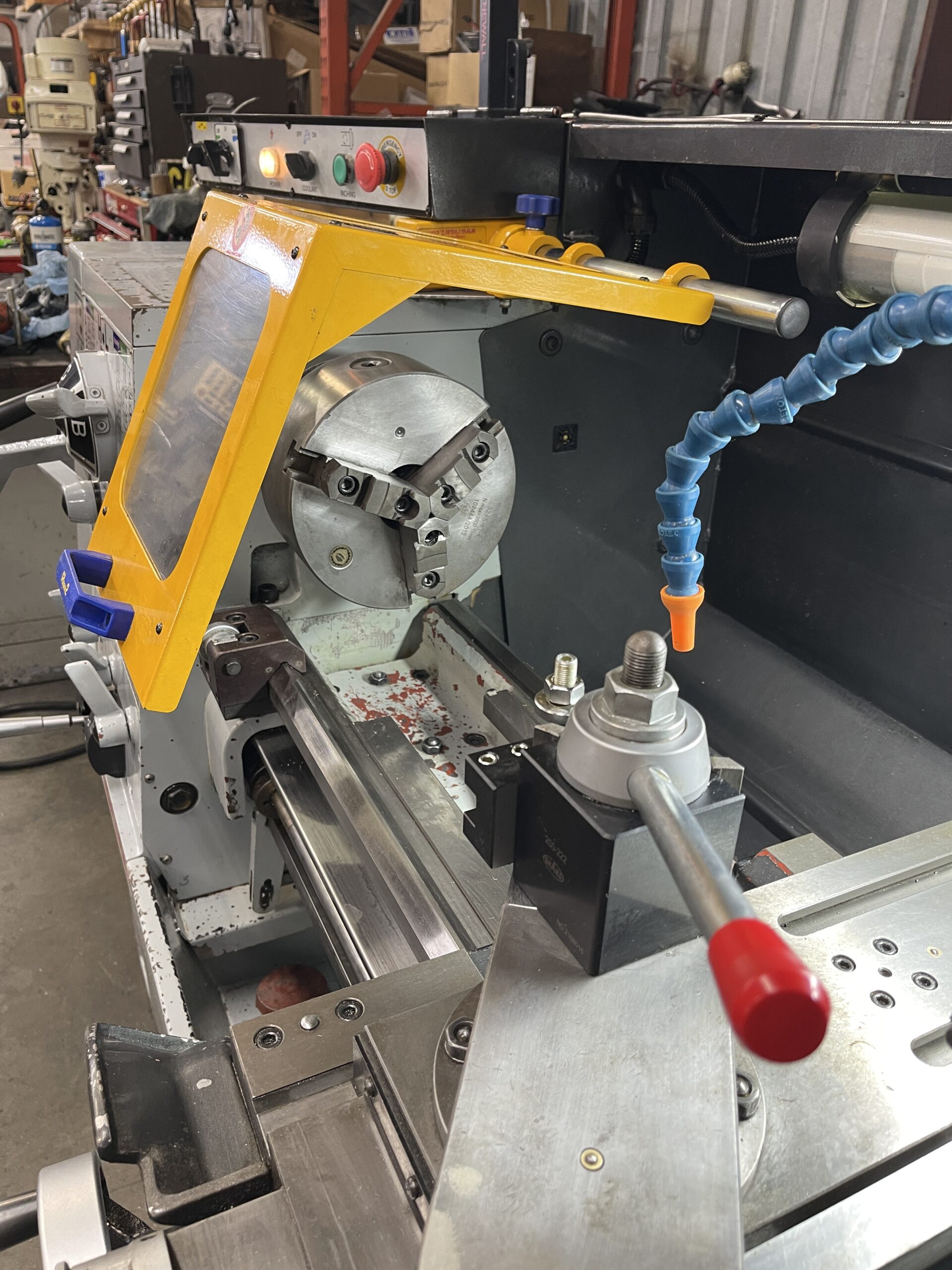

Chuck Guard w/ Safety Switch

Leveling pads and bolts

Threading dial

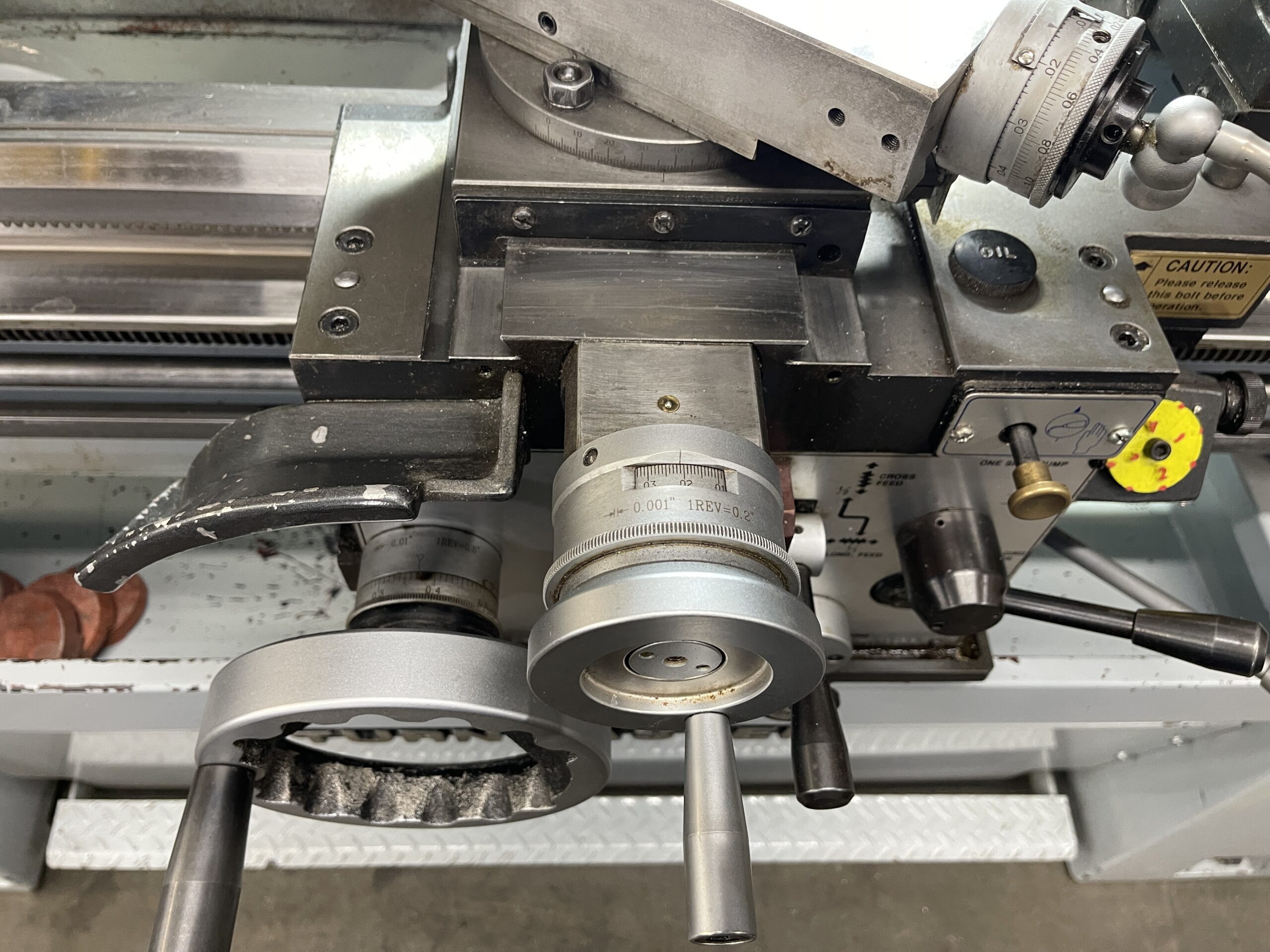

Inch/metric dual dials on cross slide; compound & tailstock

Flood coolant system

SPECIFICATIONS:

Swing Over Bed                     13.39″

Swing Over Cross Slide          8.27″

Distance Between Centers      40″

Spindle Speed RPM Range    50-2570 RPM (Hi/Low and Also 2 Speed motor)

Hole Through Spindle             1.520″ (Yes I measured it Literature has a typo)

Spindle Nose                           D1-4

Motor HP                                5 HP

Quill Diameter                        1.97″

Quill Travel                             4.41″

Inch Thread Range (TPI)        2-72 TPI

Metric Thread Range              0.2 – 14

Tailstock Spindle Taper          MT 3

Voltage                                    3/60/220 V

Dimensions                          86″ x 34″ x 55″ for shipping.

EQUIPPED WITH:

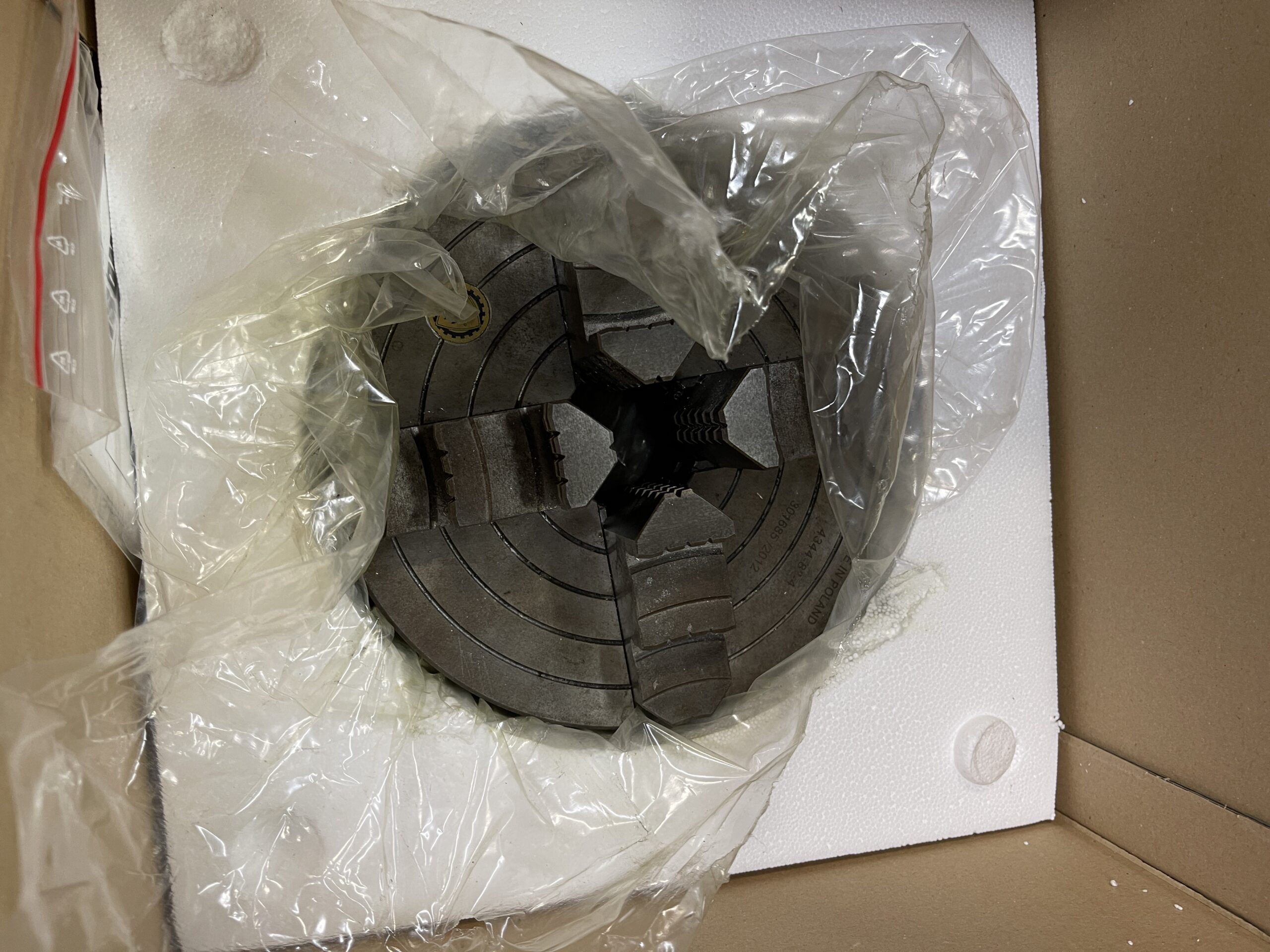

Bison 3 & 4 Jaw Chuck

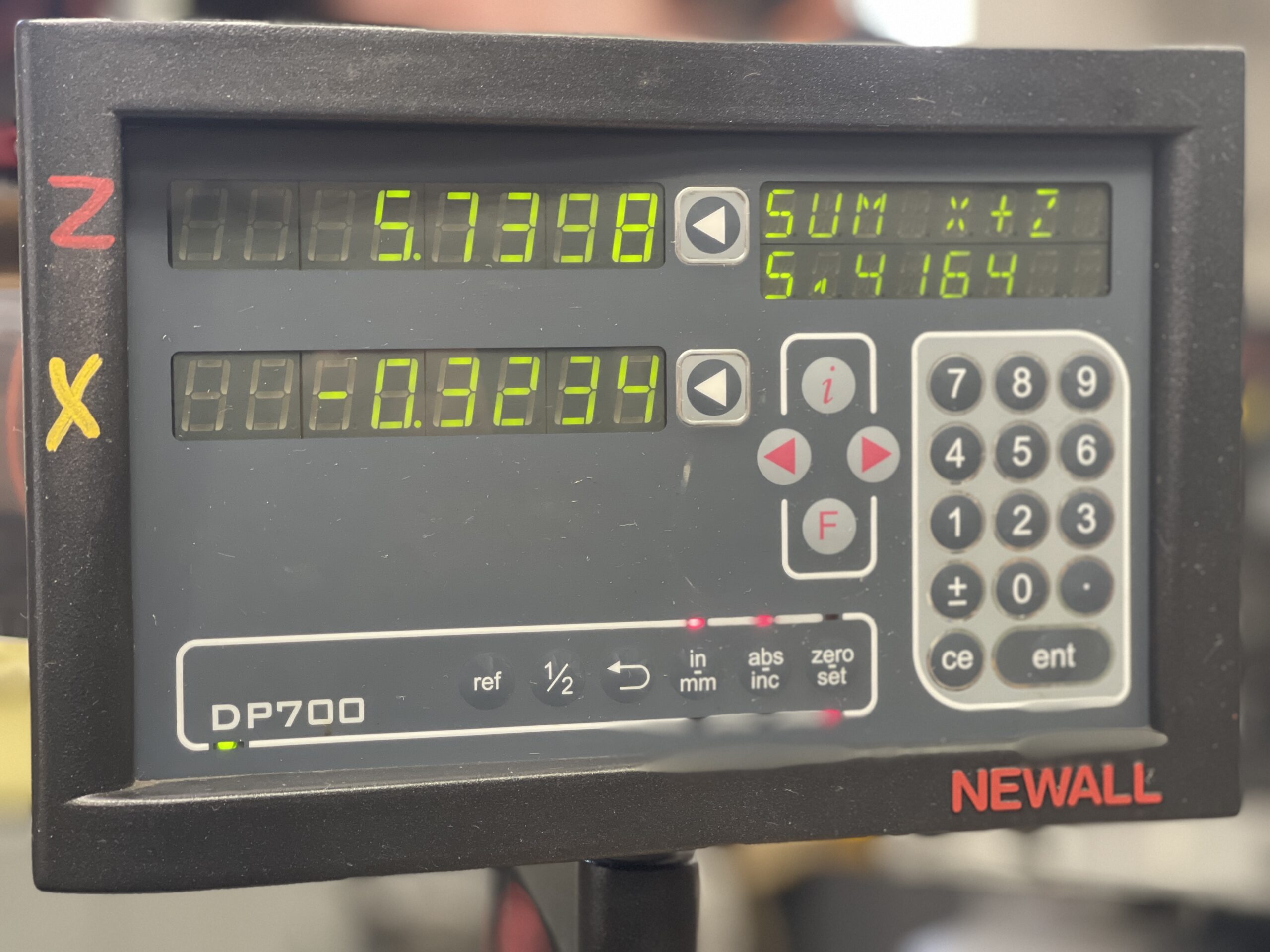

NewAll 2 Axis Digital Readout

Quick Change Toolpost w/ Holders

5C Lever Operated Collet Closer w/ Collet Nose Piece (No Collets)

Steady Rest

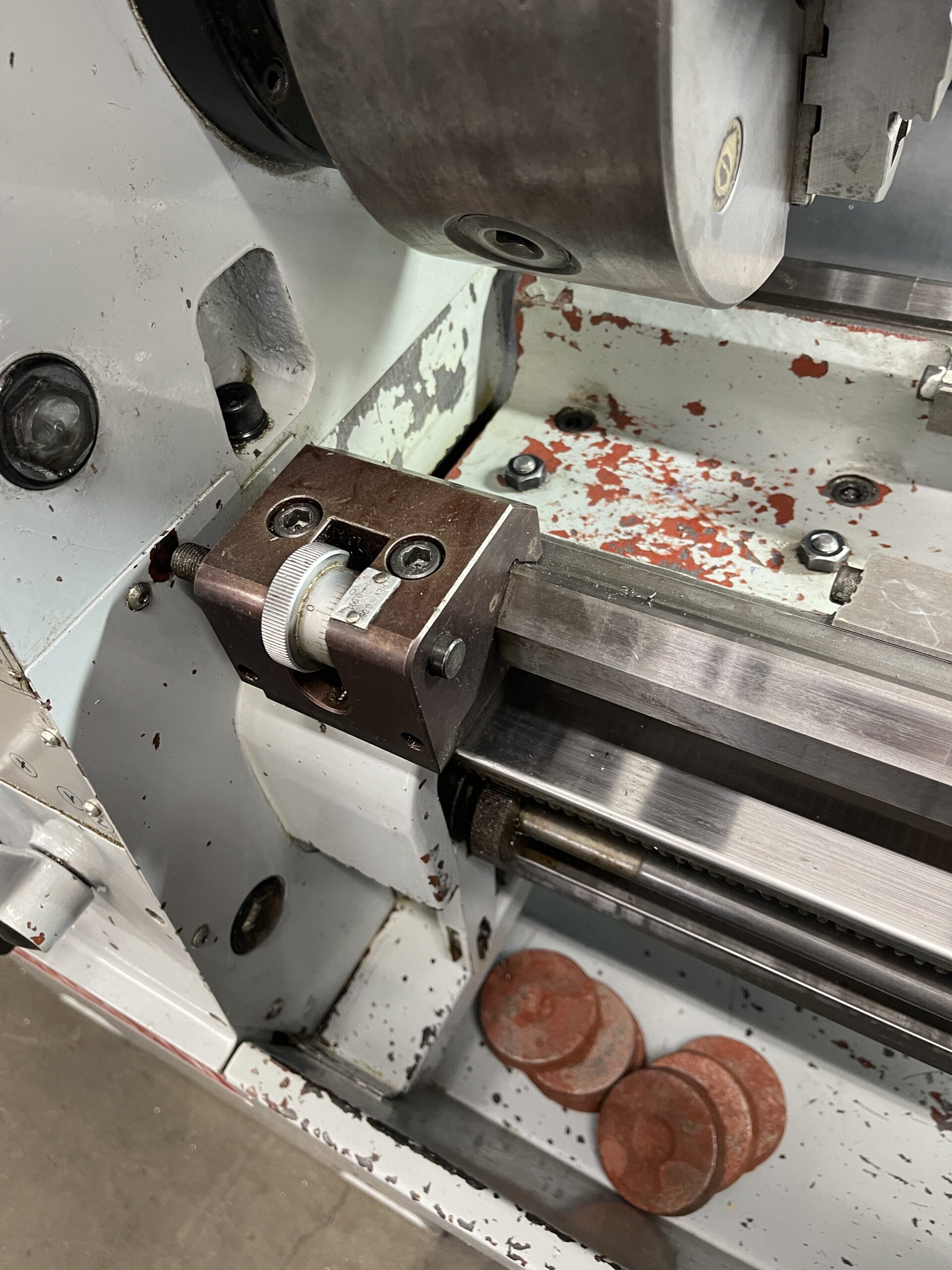

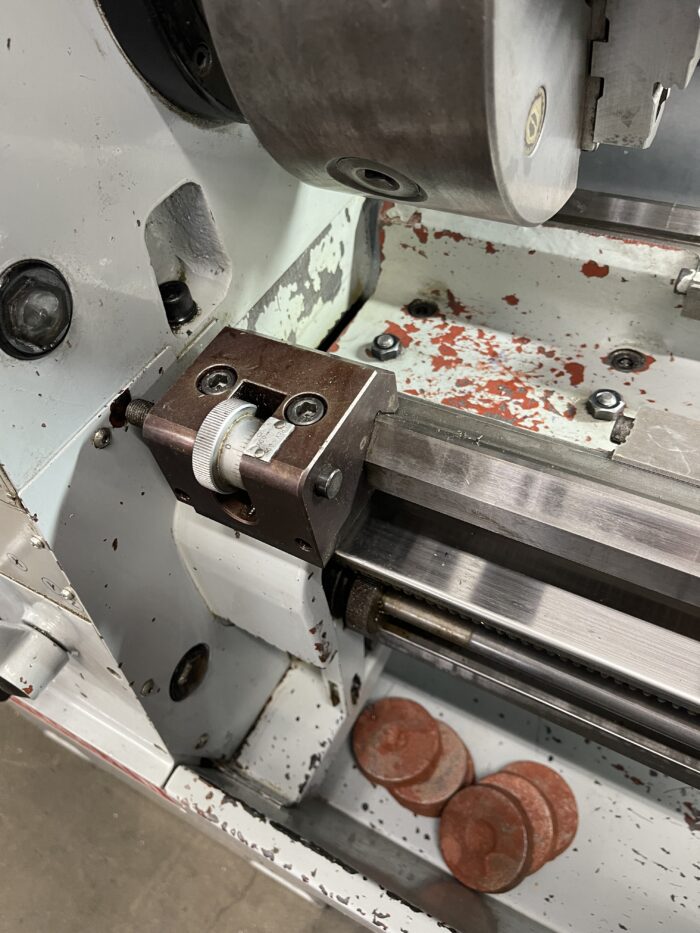

Micrometer Bed Stop

Coolant Tank and Pump

Royal Live Center

Jacobs Drill Chuck

9 Machines……   One Machine left. $8500.00
