Description

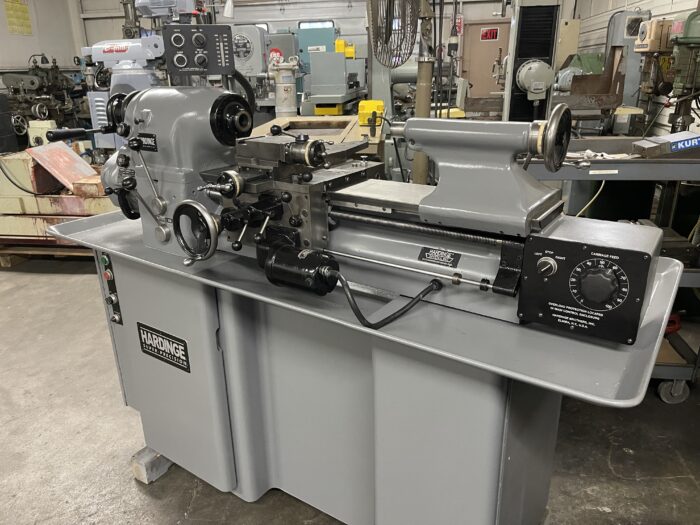

HARDINGE MODEL: HLV-H PRECISION HIGH SPEED TOOLROOM LATHE

SPECIFICATIONS:

SWING OVER BED                                                   11″
SWING OVER BED                                                   11″
SWING OVER CARRIAGE                                       9″
SWING OVER CROSS SLIDE                                  6″
DISTANCE BETWEEN CENTERS                         18″
HOLE THROUGH SPINDLE                                  1-1/4″
SPINDLE SPEEDS (Variable)                                 125-3000 RPM
MOTOR                                                                        1-1/2 HP
VOLTAGE                                                                    220 VOLT 3-PHASE
TAILSTOCK SPINDLE DIAMETER                      1-3/8″
TAILSTOCK SPINDLE TRAVEL                            3-3/4″
TAILSTOCK SPINDLE TAPER                               #2 MORSE TAPER
FLOOR SPACE:                                                          72″ L x 30″ W x 60″ H
WEIGHT                                                                      1,700 LBS

EQUIPPED WITH:
5″ 3-JAW CHUCK

4-Jaw Chuck

5C – LEVER COLLET CLOSER

(27) 5-C COLLETS

Live Center

CONDITION: “Very Good” – Bed is very nice, Machine cleaned Cycled & Painted.

PRICE………………….$ 12,500.00

Add a DRO

PRICE……..w/ NEW ACU-RITE DRO (0.0001″ Resolution) $ 14,950.00
