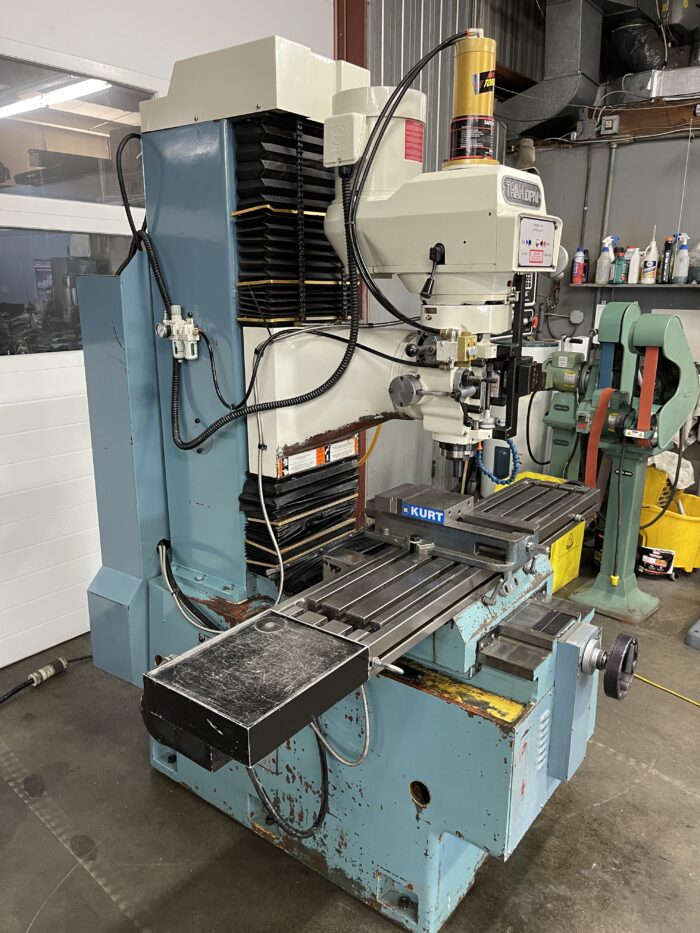

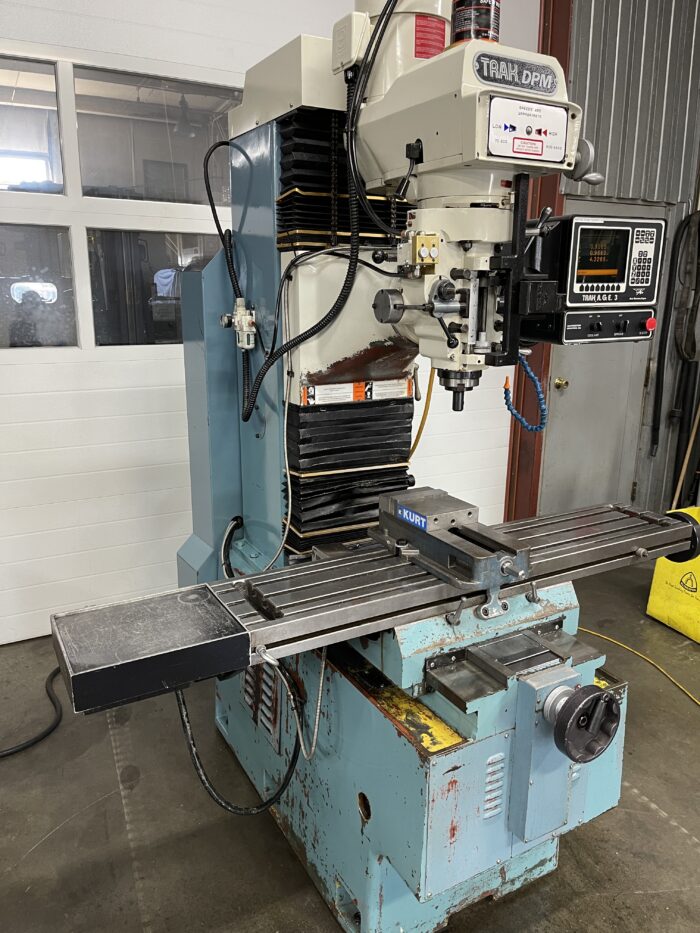

SWI TRAK  DPM 3 AXIS CNC BED MILLING MACHINE  W/ TRAK A.G.E. 3 CNC CONTROL

$12,900.00

SWI TRAK  DPM 3 AXIS CNC BED MILLING MACHINE  W/ TRAK A.G.E. 3 – CNC CONTROL

Description

SWI TRAK  DPM 3 AXIS CNC BED MILLING MACHINE  W/ TRAK A.G.E. 3 – CNC CONTROL

MODEL:  DPM

SPECIFICATIONS:

Overall size of t-slotted table                        10″ x 50″

Range: Longitudinal                     (X)            31″

Cross                                                 (Y)           17″

Head                                                 (Z)            23.5″

Quill                                                                    5″

Maximum table load                                       1,320 Lbs.

Spindle taper                                                    #40 N.S.T.

Infinitely variable spindle speeds to            70-4,200 R.P.M.

Quill feeds                                            (3)        .002, .004, & .006 I.P.R.

Head swivel, left and right of zero to           90 degrees

Max./Min. distance spindle nose to table  24″/0″

Distance, spindle center to column face     17.3″

Horse Power                                                      3HP

Voltage                                                                220 or 440/3/60

Approximate Dimensions:                             68″ W x 64″ D x 95″ High

Approximate Weight:                                      4,100 Lbs.



EQUIPPED WITH:

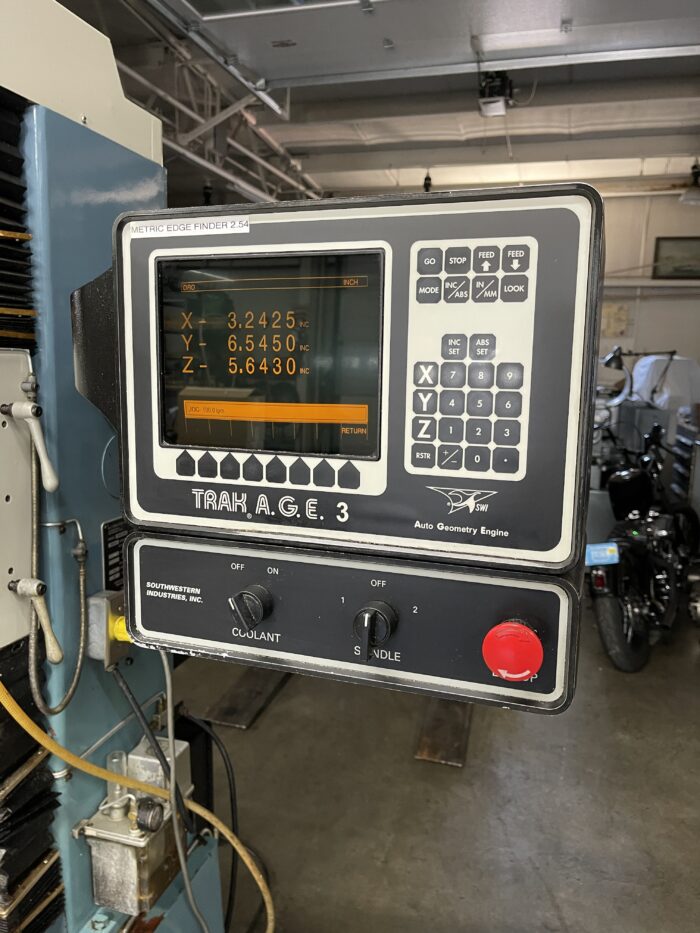

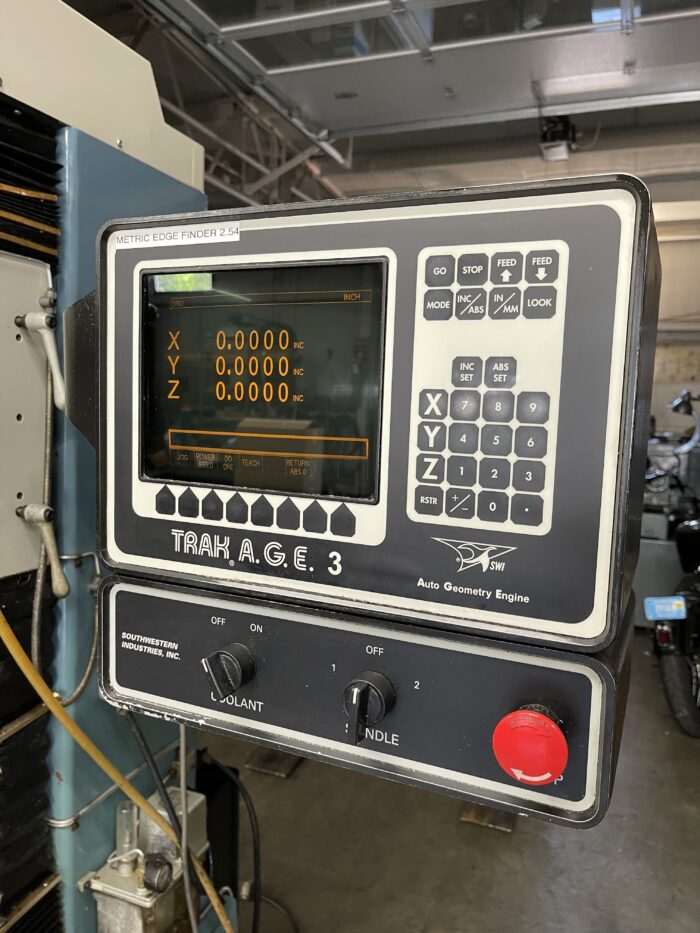

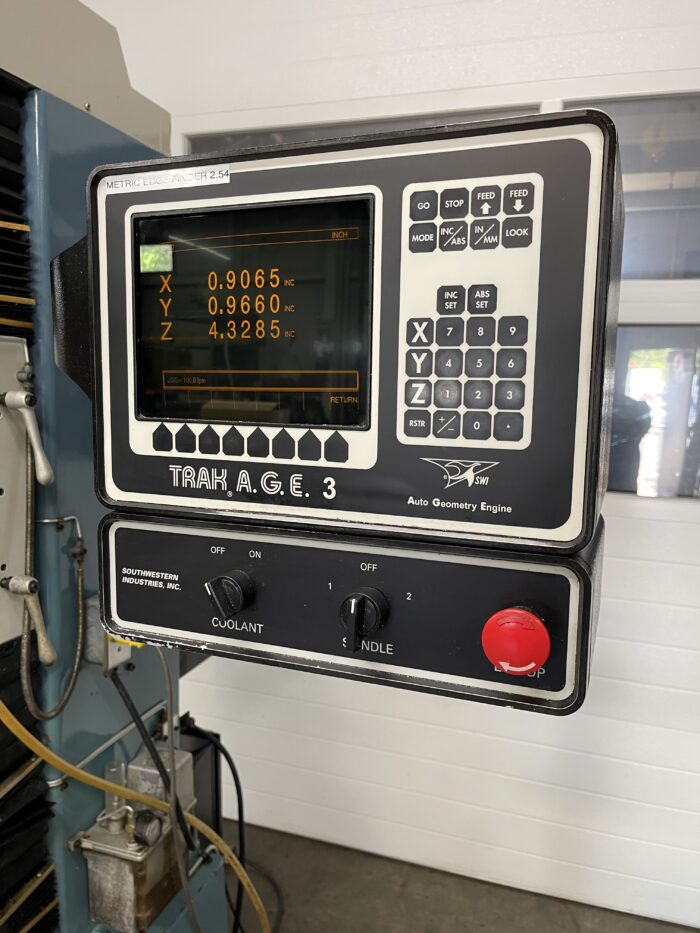

Trak A.G.E. 3 Control, 3Axis CNC

3 AXIS  CNC Machining or Hand wheels for Manual Operation in manual model 3-axis DRO
9″ CRT

Precision Ball Screws and AC Servo Drives

Air Power Draw Bar
3-Axis simultaneous interpolation including:
Helical canned cycles
Square box ways (hardened & ground)
Automatic lubrication system
Way covers
Coolant



Condition: SUPERB
