Description

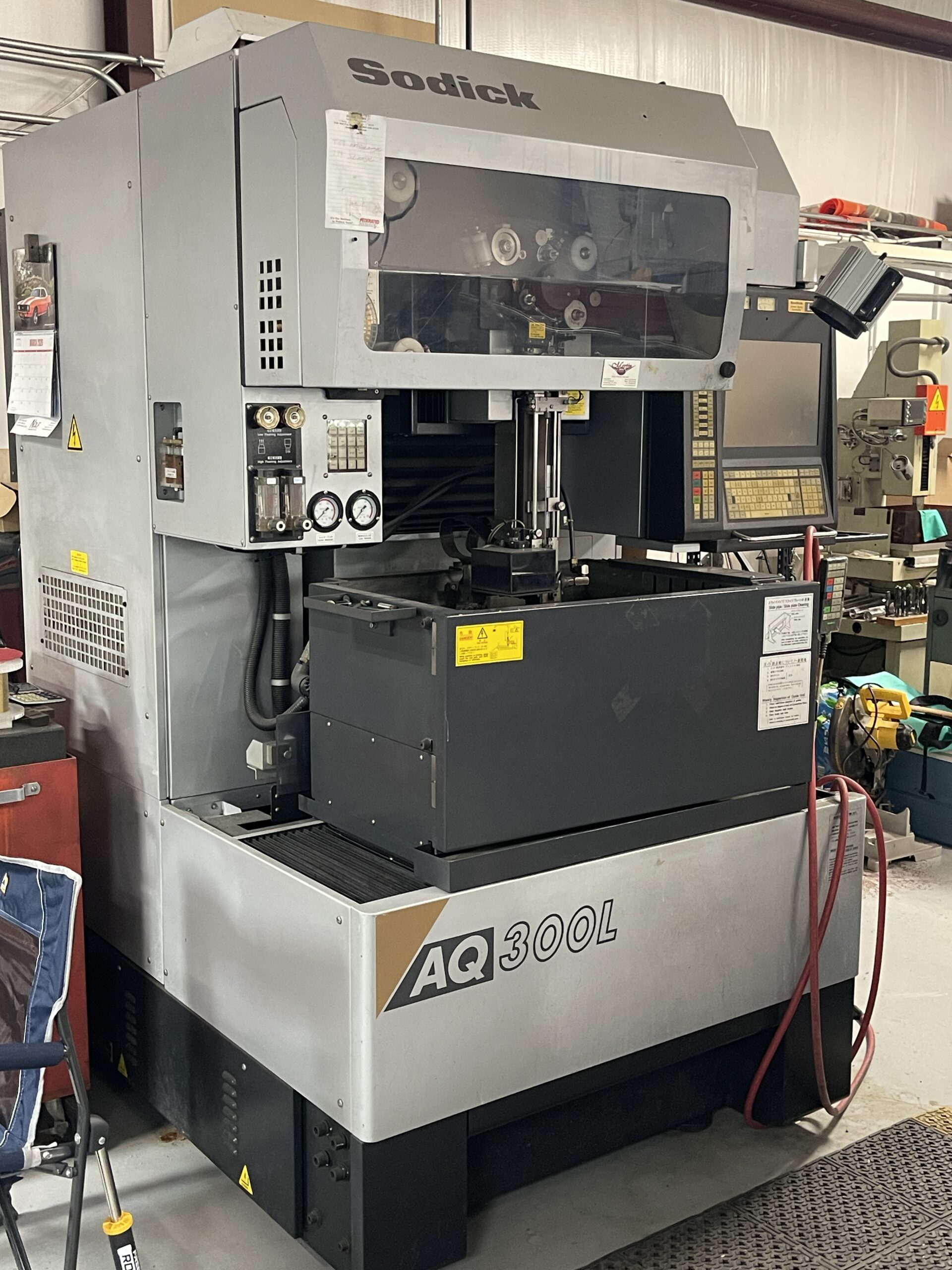

Sodick AQ300L CNC Wire EDM

Year:    2006     Customer said its low Hours. (In a plant under Power – Rigger required for removal)

Features:

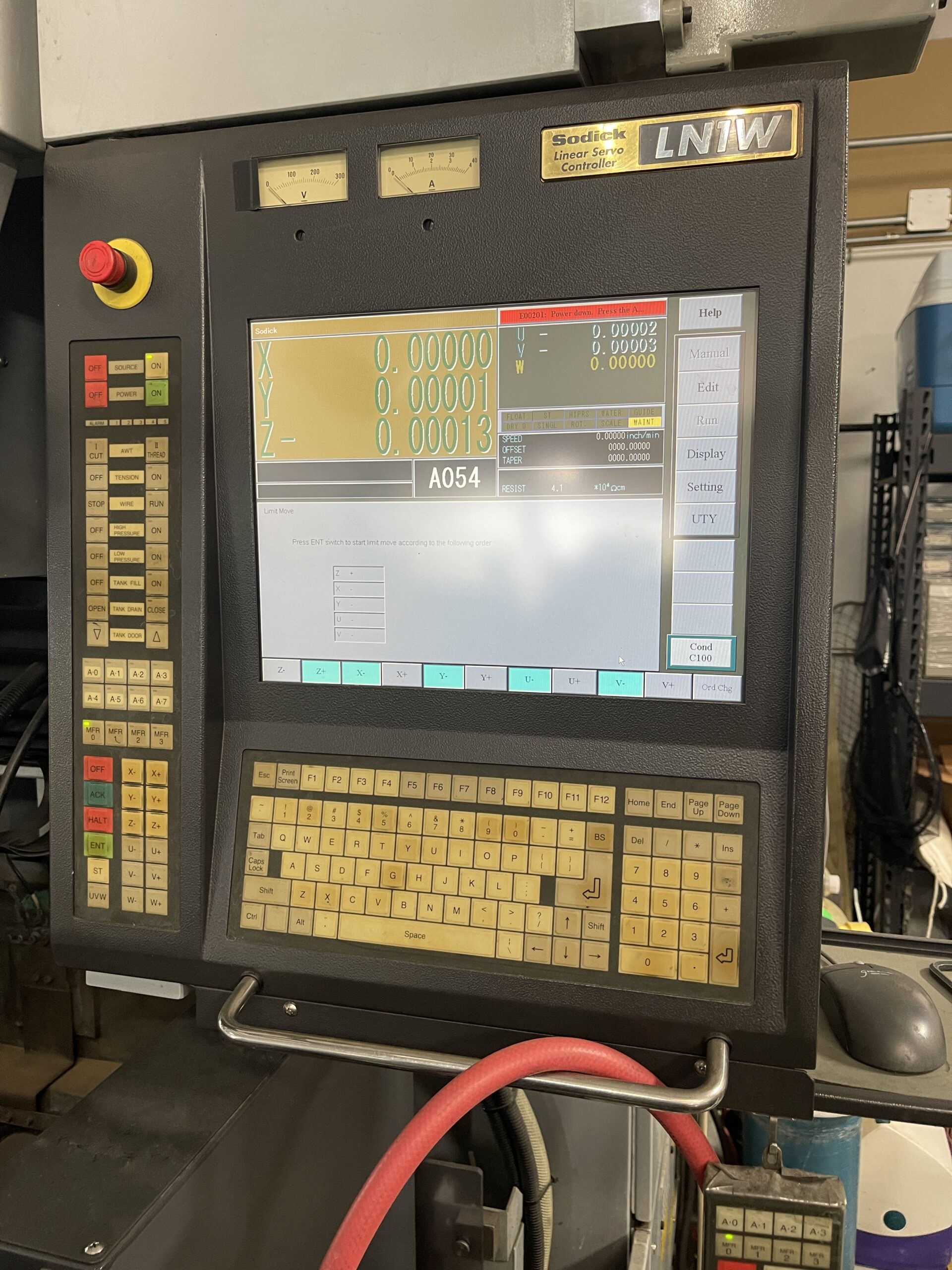

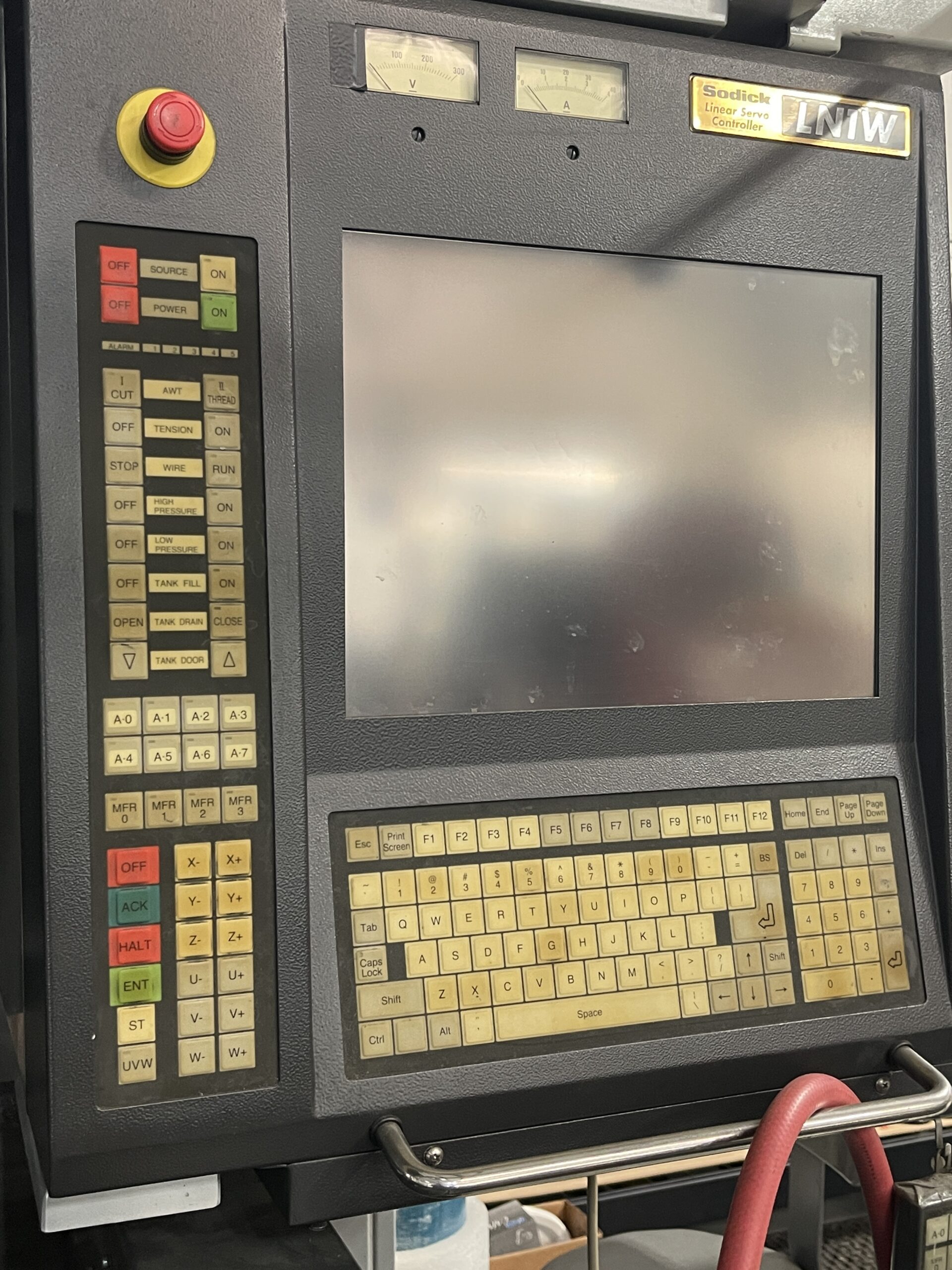

LN1W CNC Control

4 Axis Linear Drive

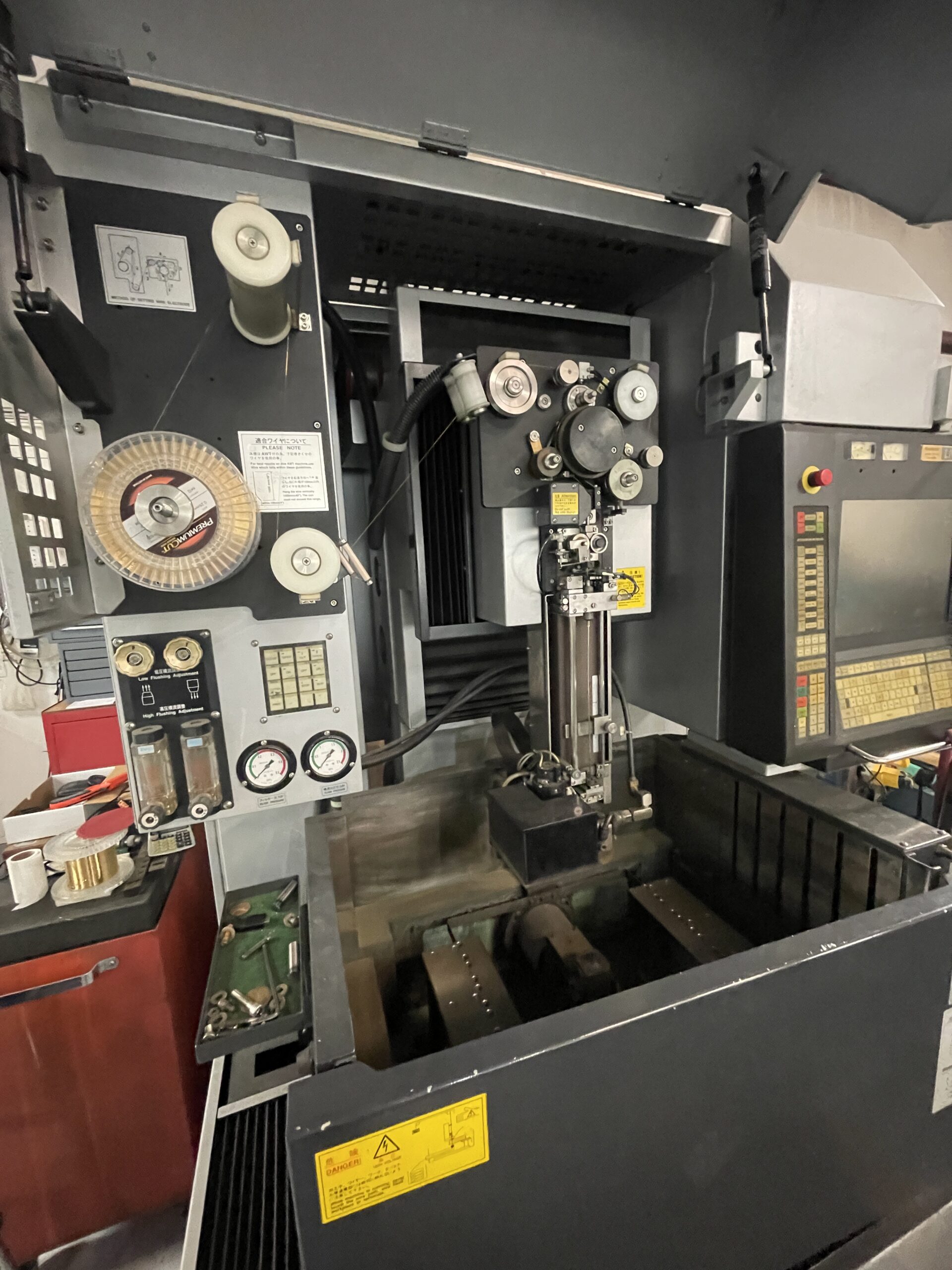

Auto Threading

Specifications:

X-Axis: 12.0″

Y-Axis: 8.0″

Z-Axis: 8.0″

U/v- Axis : 3.0″ x 3.0″

Degree Taper Cutting : +/- 20 Degrees @ 3.01″

Wire Diameter (Min.) : 0.006″

Wire Diameter (Max.) : 0.019″

Max. Wire Feed Speed : 16.54 IPS

Max. Wire Spool Volume : 17.64 Lbs

Inside Tank Dimensions : 29.5″ x 21.6″

Max. Workpiece Height : 8.66″

Max. Workpiece Weight : 1,100 Lbs

Distance From Floor to Table Top : 39.37″

Work Table Size (WxD) : 21.1″ x 13.27″

Work Tank Dimensions (WxD) : 31.9″ x 25.6″

General:

Power Requirement: 200-230v / 3-phase /60 Hz

Overall Dimensions: 75″ x 86″ x 77″ High

Weight : 5,500 lbs
