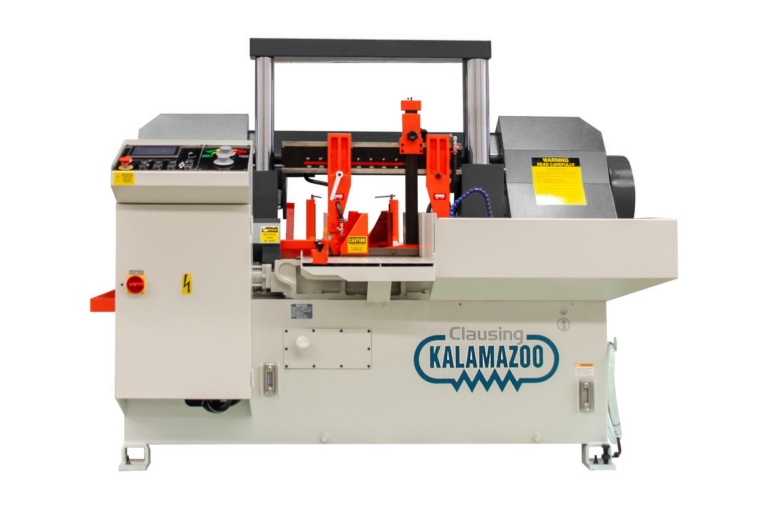

Clausing H1315NC Twin Column Automatic Bandsaw



Description

This Automatic Horizontal Bandsaw is designed for rugged production use and it offers high production output and heavy-duty performance in fully automatic NC Hinge operation.

A powerful drive motor provides the power and the optional hydraulic bundling attachment makes multiple cuts easy. The hydraulic shuttle feed system offers up to nine indexes.

Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.

Features

  • Oversized hydraulic cylinder
  • Hydraulic shuttle vise assembly
  • Inverter controlled infinitely variable speed
  • Carbide blade guides with roller bearings
  • Two additional guides to support the blade from the top
  • Automatic hydraulic blade tensioning
  • Power driven blade brushes
  • Integral coolant system
  • Smart NC-100 technology programmable up to 100 different jobs
  • Easy recall and execution of stored parts
  • Automatic shutoff after preset number of cuts or when out of stock
  • 5.7” HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
  • Automatic kerf loss compensation & computer controlled multiple indexing
  • Precision feed pressure & feed rate
  • Bundle/single cutting mode switch
  • Automatic height setting feature
  • Hydraulic front and rear vises
  • Cast iron vises with replaceable hardened wear plates
  • Discharge table with built-in coolant return
  • Blade slippage or breakage detection
  • Adjustable cut-off stock fence
  • Additional flushing hose
  • Bi-metal saw blade
  • Built-in work light
  • Tool box, leveling pads, and an additional wire brush
  • Operation and parts manual

90° Cutting Capacity

  • Round: 18”
  • Square: 18”
  • Rectangular: 18” x 18”

Specifications

  • Blade size: 1.5” x 0.050” x 184”
  • Blade speeds: 66-328 fpm (variable speed)
  • Blade tension: hydraulic
  • Coolant: recirculating
  • Coolant capacity: 21 gallons
  • Feed accuracy: ± 0.004” to 0.008”
  • Length of remnant (manual): 0.79”
  • Length of remnant (automatic): 2.95”
  • Min cut thickness: 0.197”
  • Bundle cutting (requires purchase of optional hydraulic bundle cutting attachment)
    • Width: 7.48” x 11.81”
    • Height: 2.75” to 5.51”
  • Feed length/index: 23.3”
  • Max feed: 252.6”
  • Bed height: 29.5”
  • Hydraulic oil capacity: 10.6 gallons
  • Hydraulic pump motor: 2HP
  • Electrical Requirements: 230V Three Phase 7.5HP
  • Machine Dims: 97” x 91” x 91”
  • Approx Weight: 6,380 lbs

Optional Add-Ons

  • Other voltages available (please contact a sales rep for more info)
  • Stock stand assembly (P10)
  • Vise press regulator (VP18NC)
  • Blade deviation detector (H18-BDD)
  • Chip conveyor (CM1801NC)
  • Hydraulic bundle clamps (CM1802NC)
  • Roller tables, various sizes
  • SAWZIT 1 gallon coolant (CSR1)
  • SAWZIT 5 gallon coolant (CSR5)
