Description

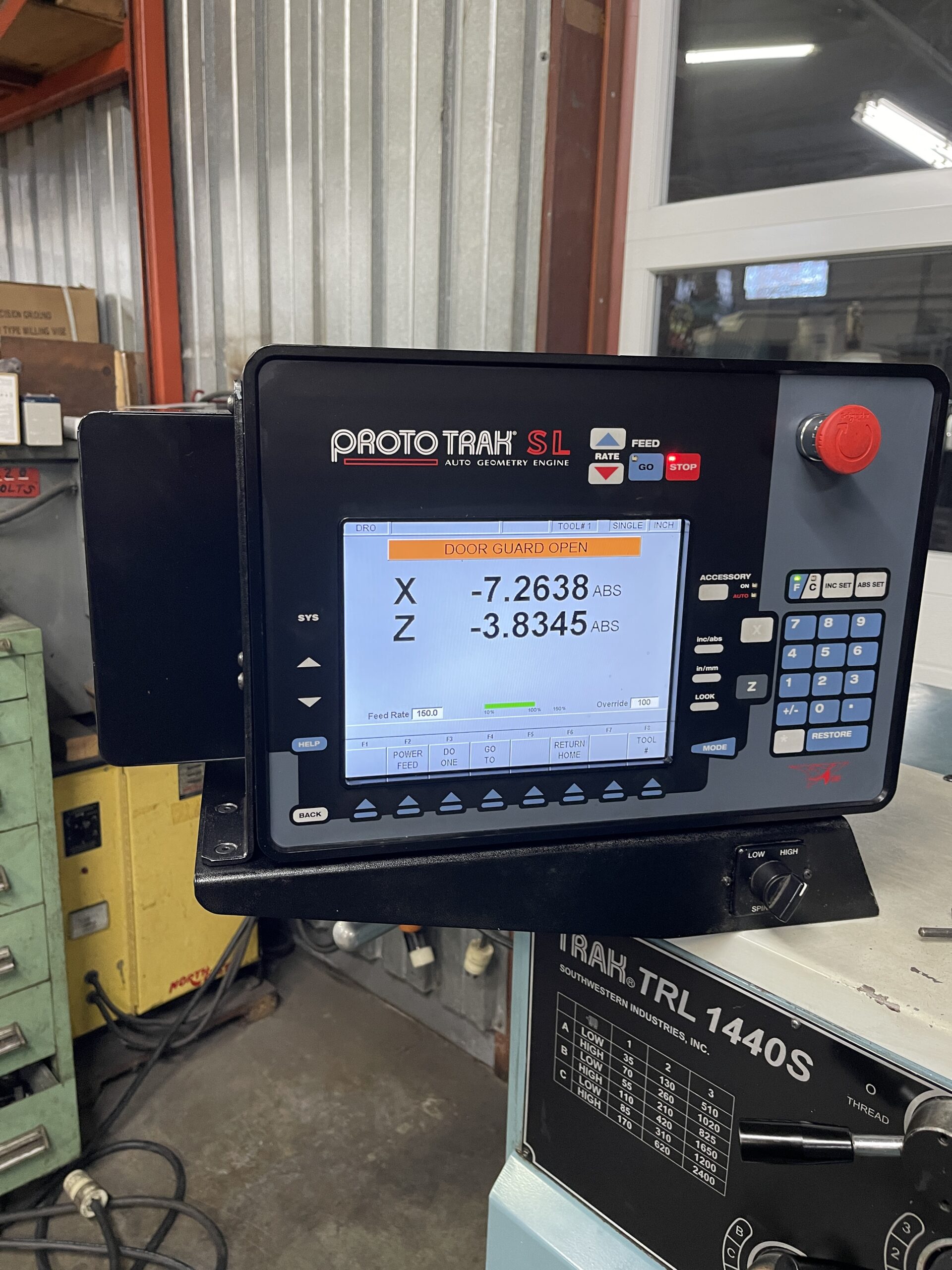

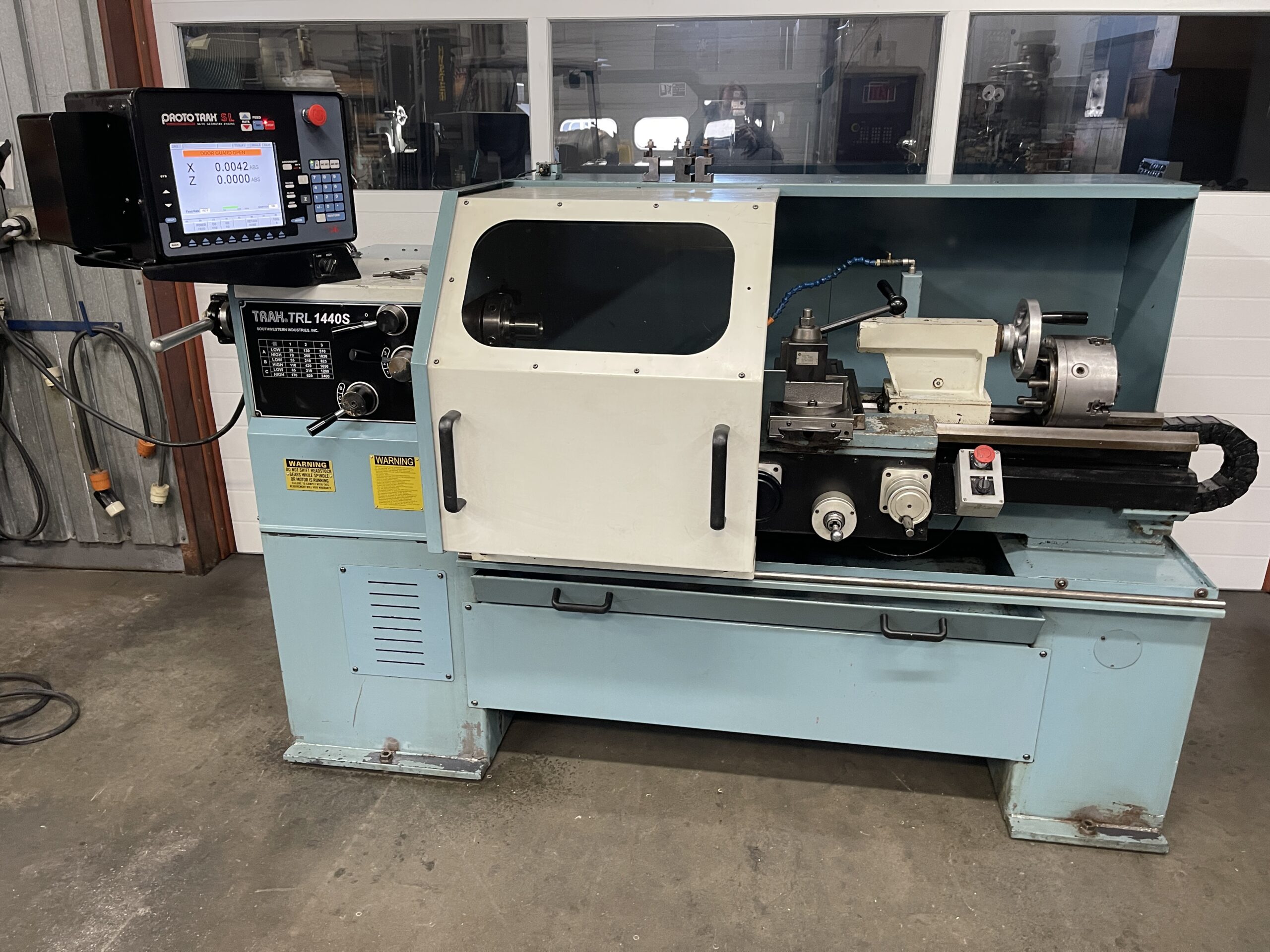

TRAK TRL 1440S w/ SL Control

SPECIFICATIONS:

Swing                                      14”

Distance between centers        40”

Swing over cross slide            7-13/16”

Cross slide travel                    8”

Bed Width                              10”

Spindle nose                            D1-5 Camlock

Spindle thru hole                     1 5/8”

Spindle speeds                        35 – 2400

Tailstock quill diameter          1 7/8”

Tailstock travel                       5 ½”

Tailstock taper                        MT #3

Motor                                      4.5HP

Voltage                                   220 Volt 3-Phase

EQUIPPED WITH:

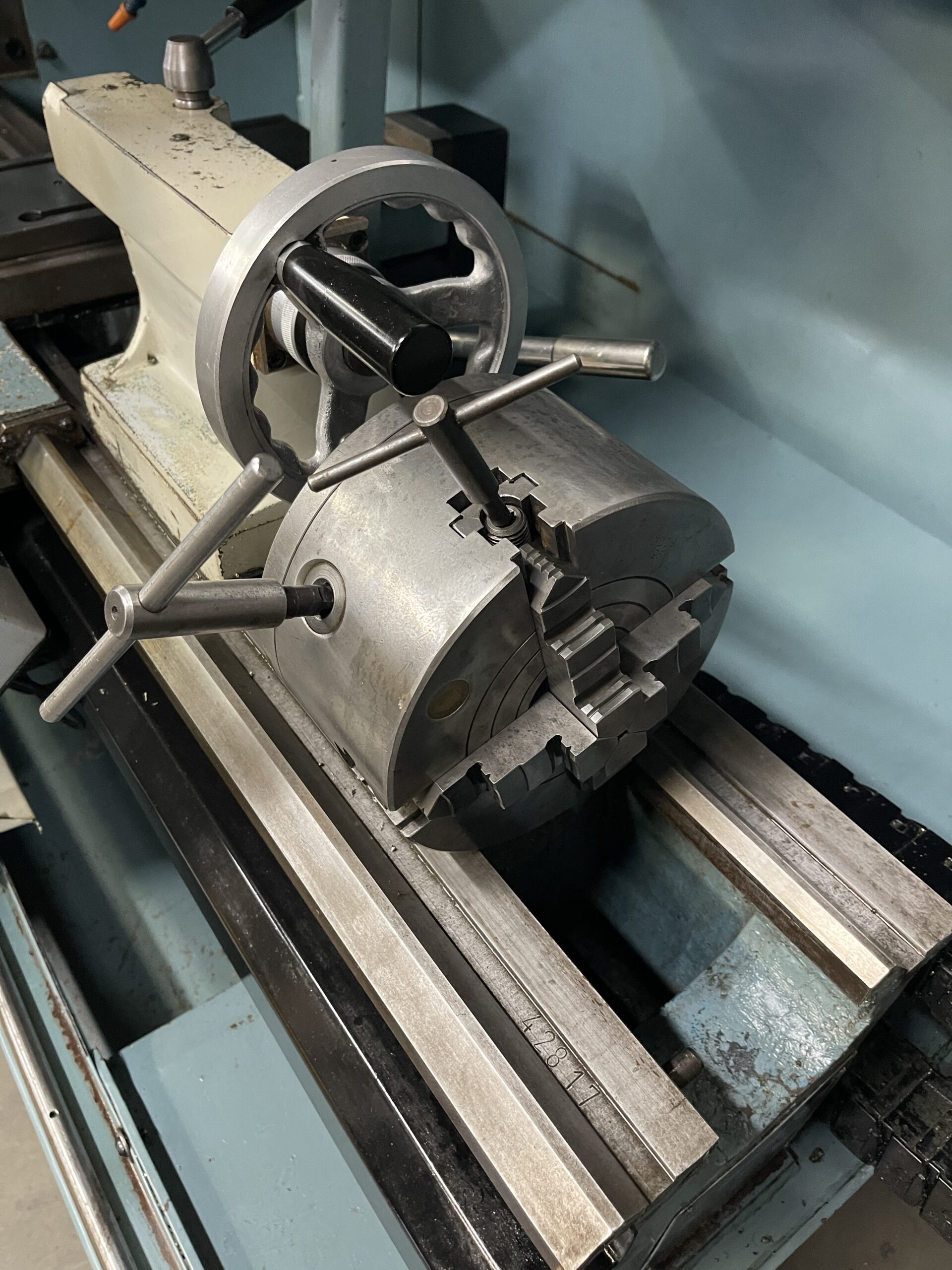

Bison 4-  Jaw Scroll Chuck & Combo Independent 4 Jaw Combined. Very Rare 2 in one.

5C – Collet Closer

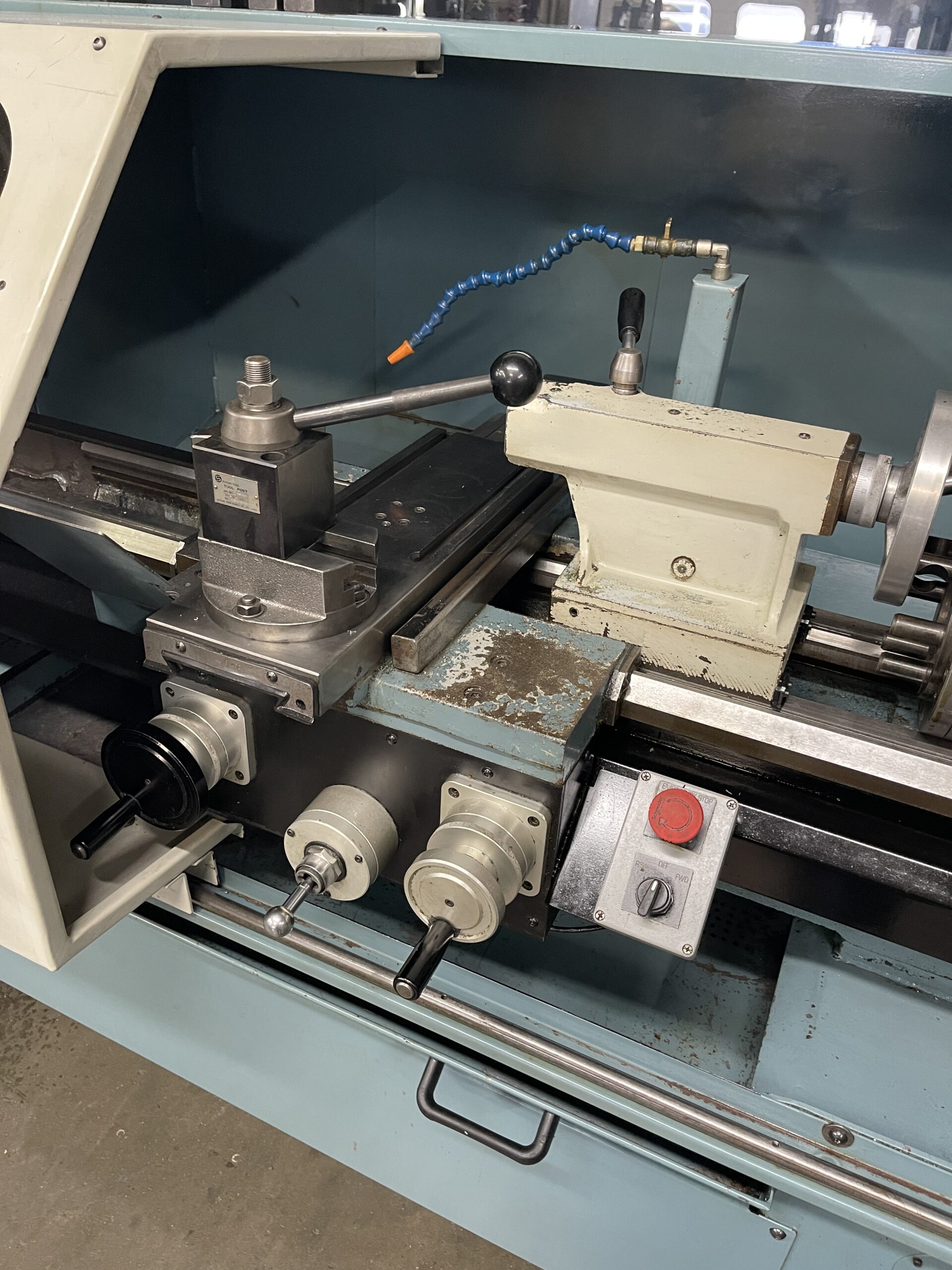

Quick Change Tool post with Holders

Coolant system w/ Chip Pan

CONDITION: Nice and Tight

Machine just Calibrated by TRAK Service Technician. Computer, Control & Servos come with a 3 Month Warrantee less freight.
