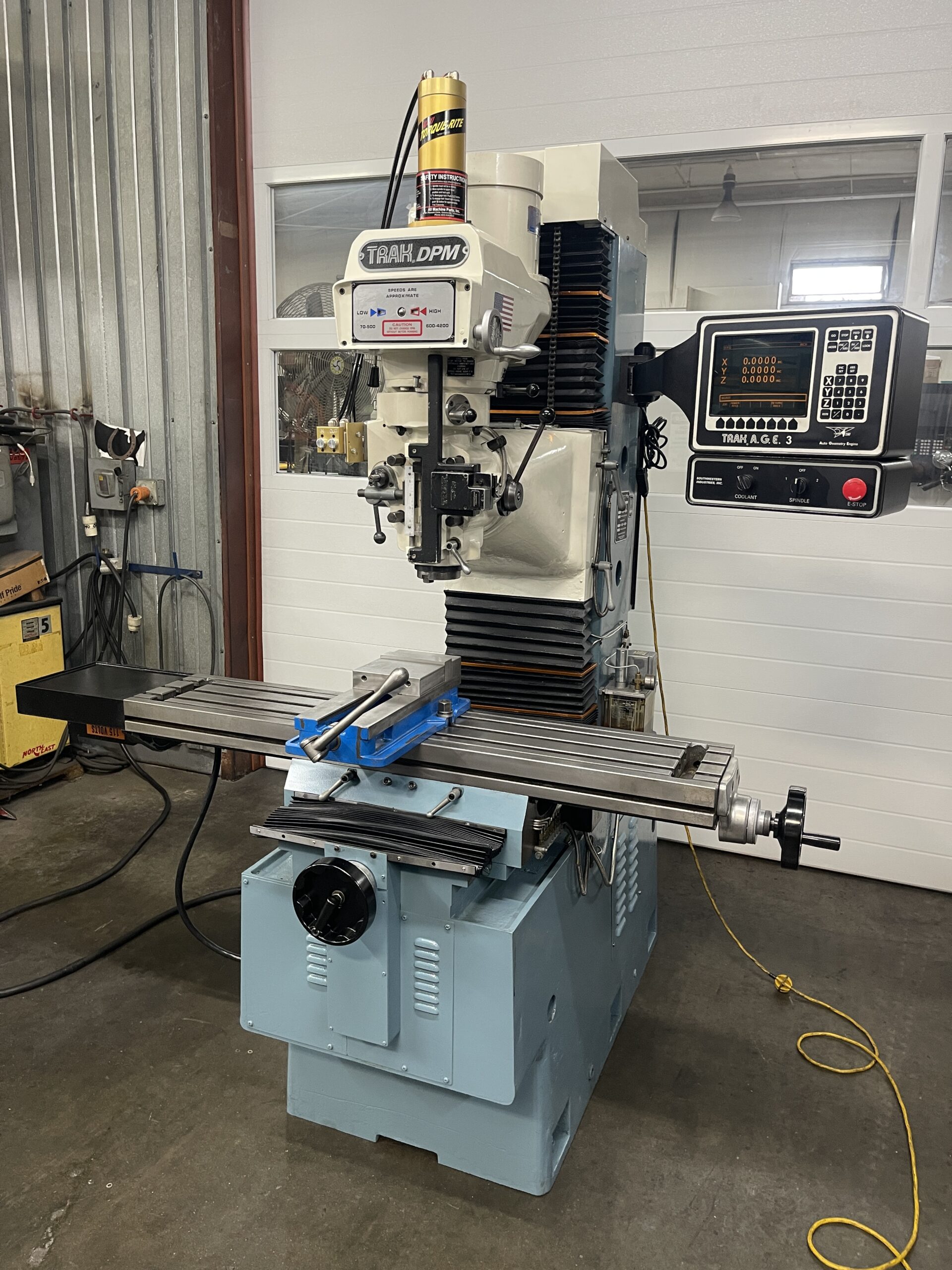

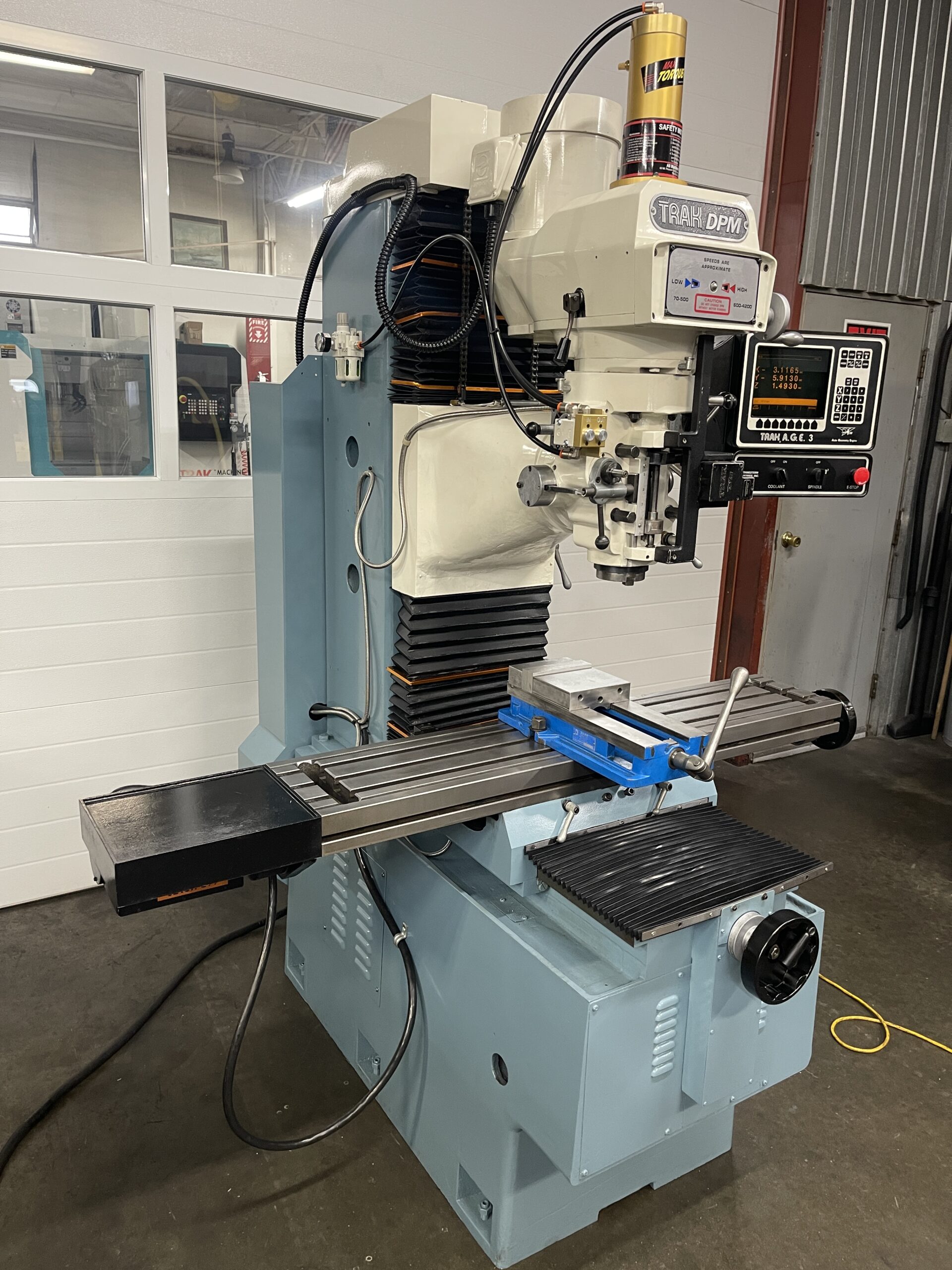

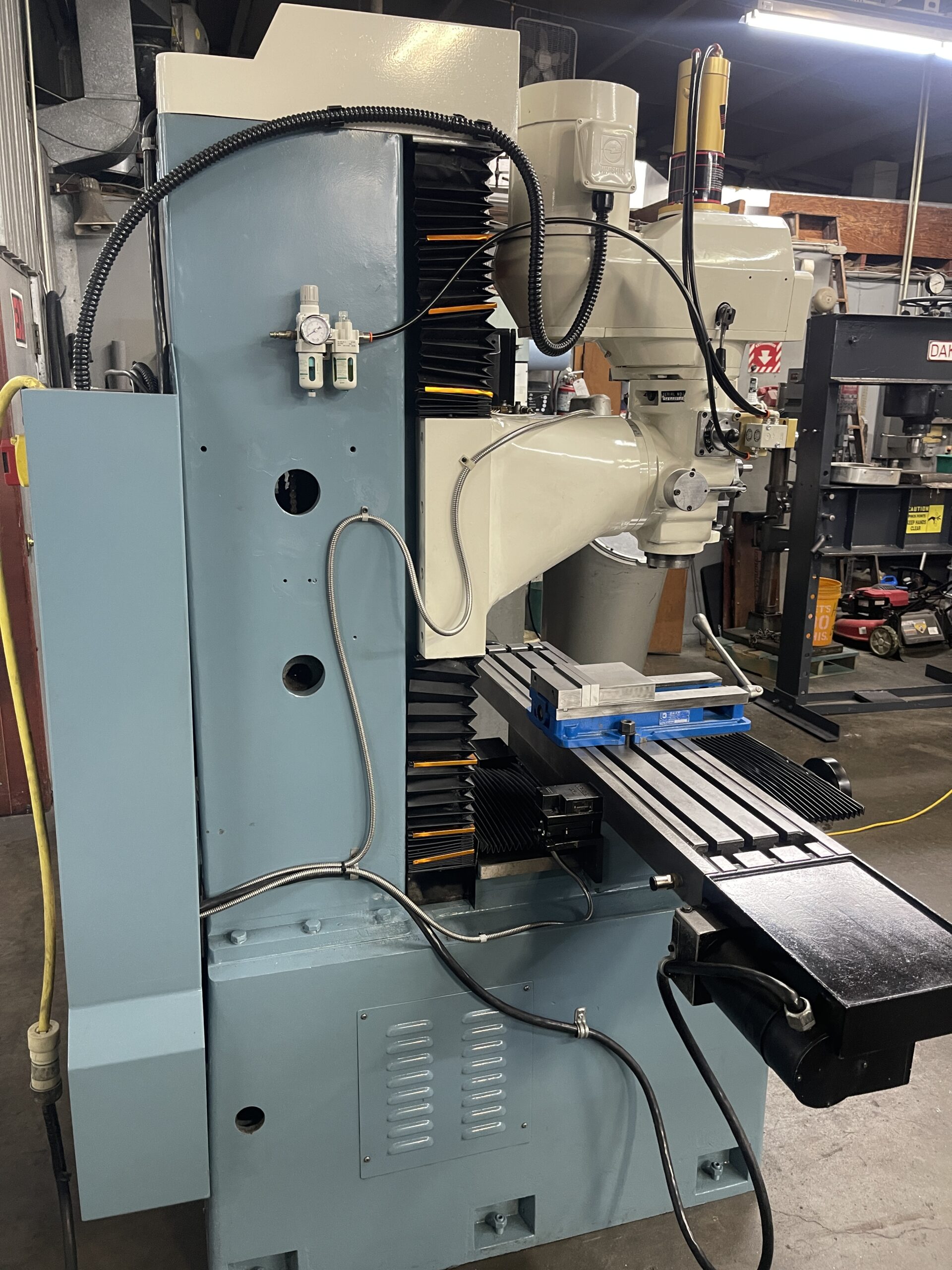

SWI TRAK  DPM 3 AXIS CNC BED MILL W/ TRAK A.G.E. 3 – CNC CONTROL

This machine can be run in 2 Axis Mode or 3 Axis.

MODEL:  DPM

SPECIFICATIONS:

Overall size of t-slotted table                            10″ x 50″

Range: Longitudinal                            (X)         31″

Cross                                                       (Y)          17″

Head                                                     (Z)            23.5″

Quill                                                                        5″

Maximum table load                                           1,320 Lbs.

Spindle taper                                                        #40 N.S.T.

Infinitely variable spindle speeds to                70-4,200 R.P.M.

Quill feeds                                            (3)            .002, .004, & .006 I.P.R.

Head swivel, left and right of zero to                 90 degrees

Max./Min. distance spindle nose to table         24″/0″

Distance, spindle center to column face            17.3″

Horse Power                                                            3HP

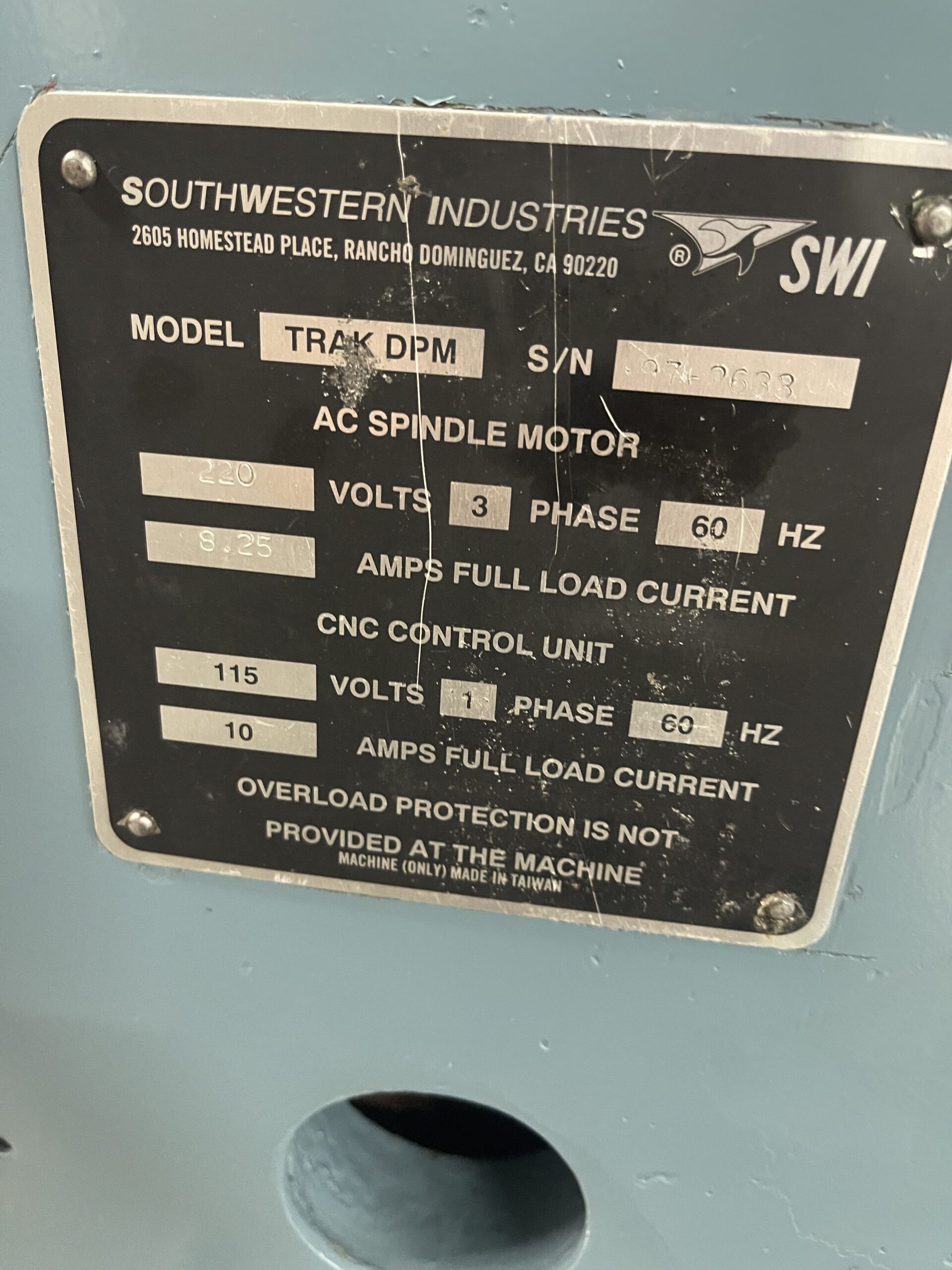

Voltage                                                                      220 3/60

Approximate Dimensions:                                   68″ W x 64″ D x 95″ High

Approximate Weight:                                            4,100 Lbs.

EQUIPPED WITH:

Trak A.G.E. 3 / 3-Axis CNC Control
3 AXIS CNC Machining or 2 Axis with Dro on quill Or Manual Hand wheels for Manual Operation.
9″ CRT
Precision Ball Screws and AC Servo Drives

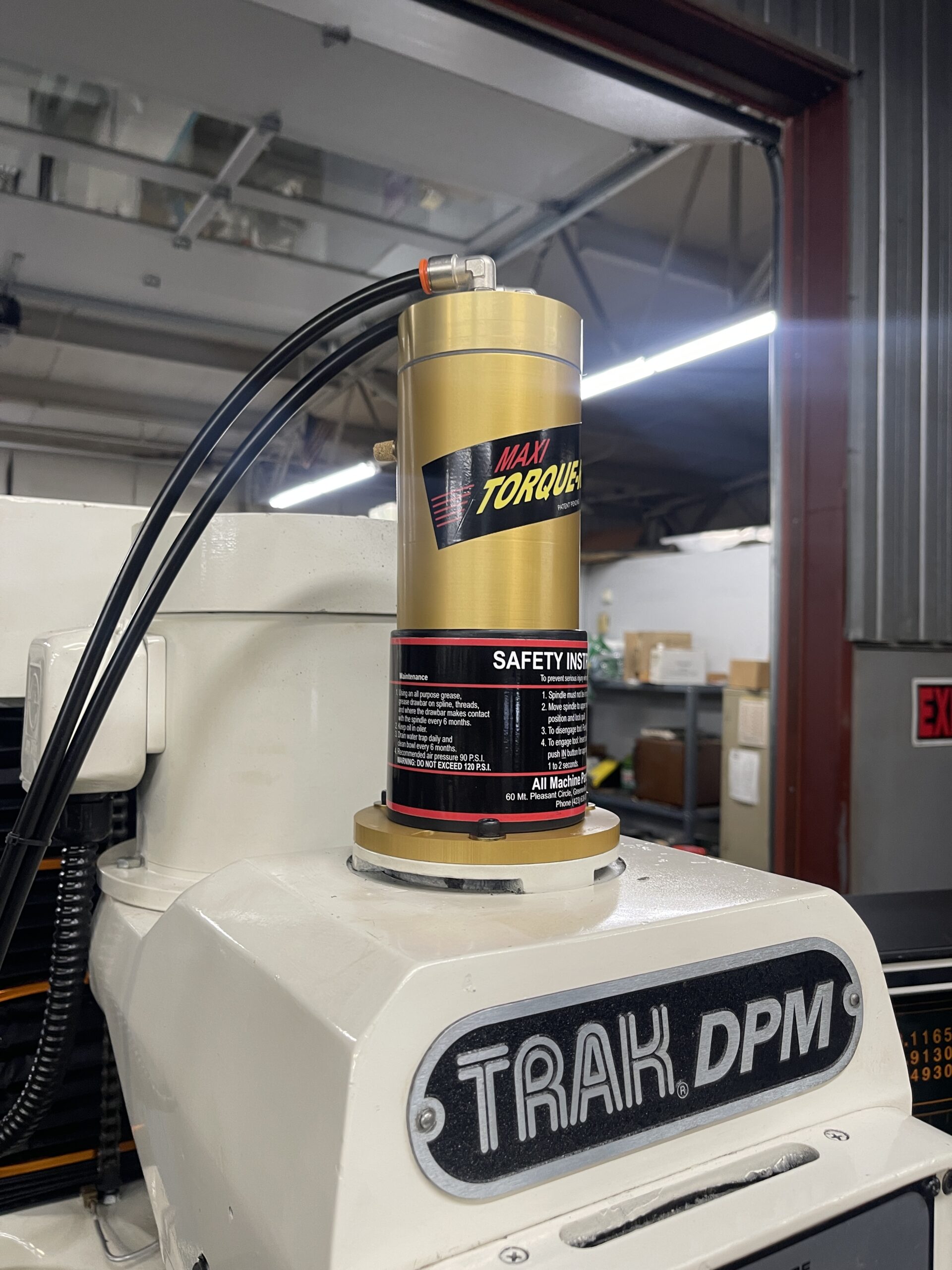

Air Power Draw Bar (NEW)
Square box ways (hardened & ground)

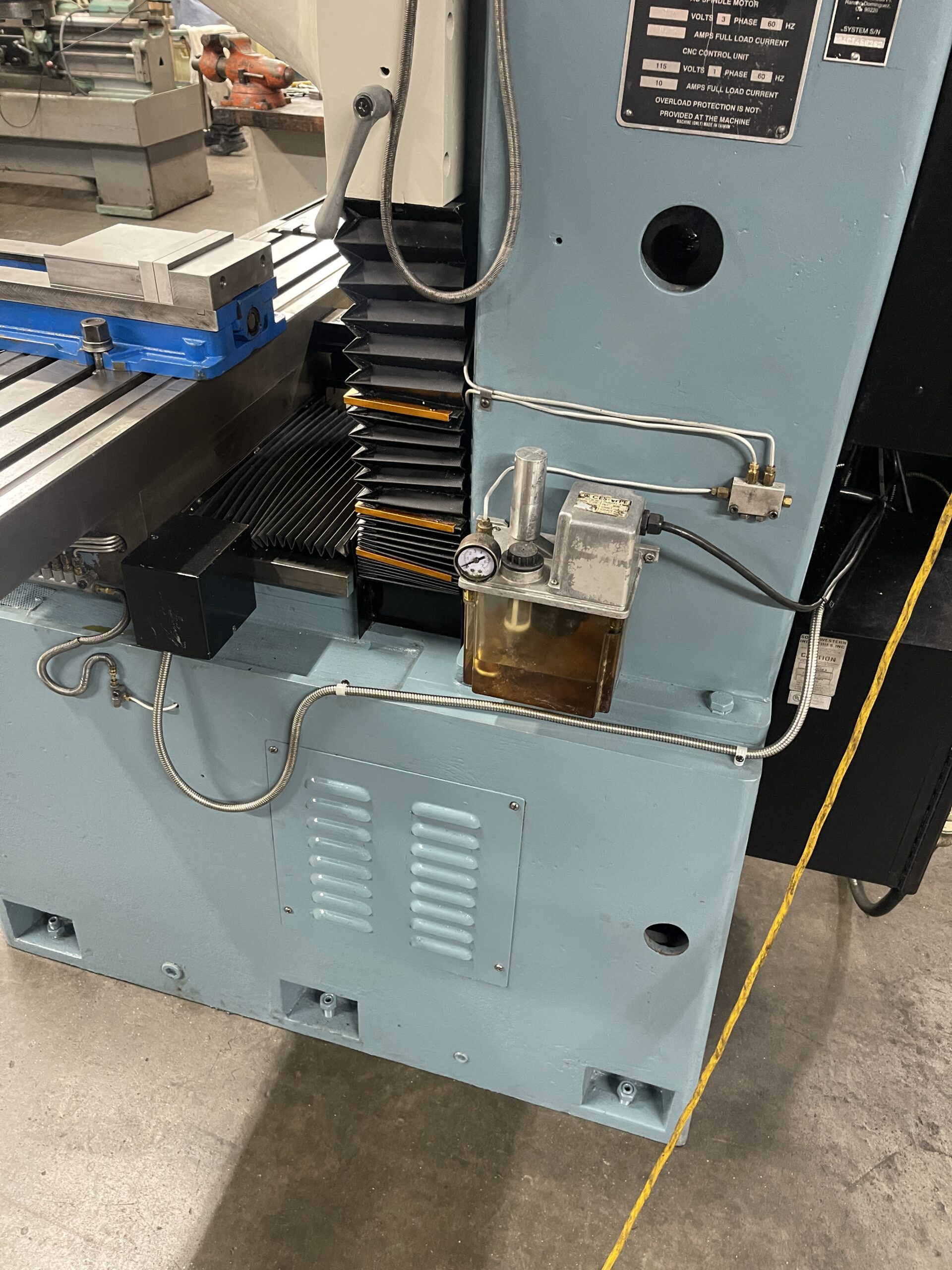

Automatic lubrication system
Way covers

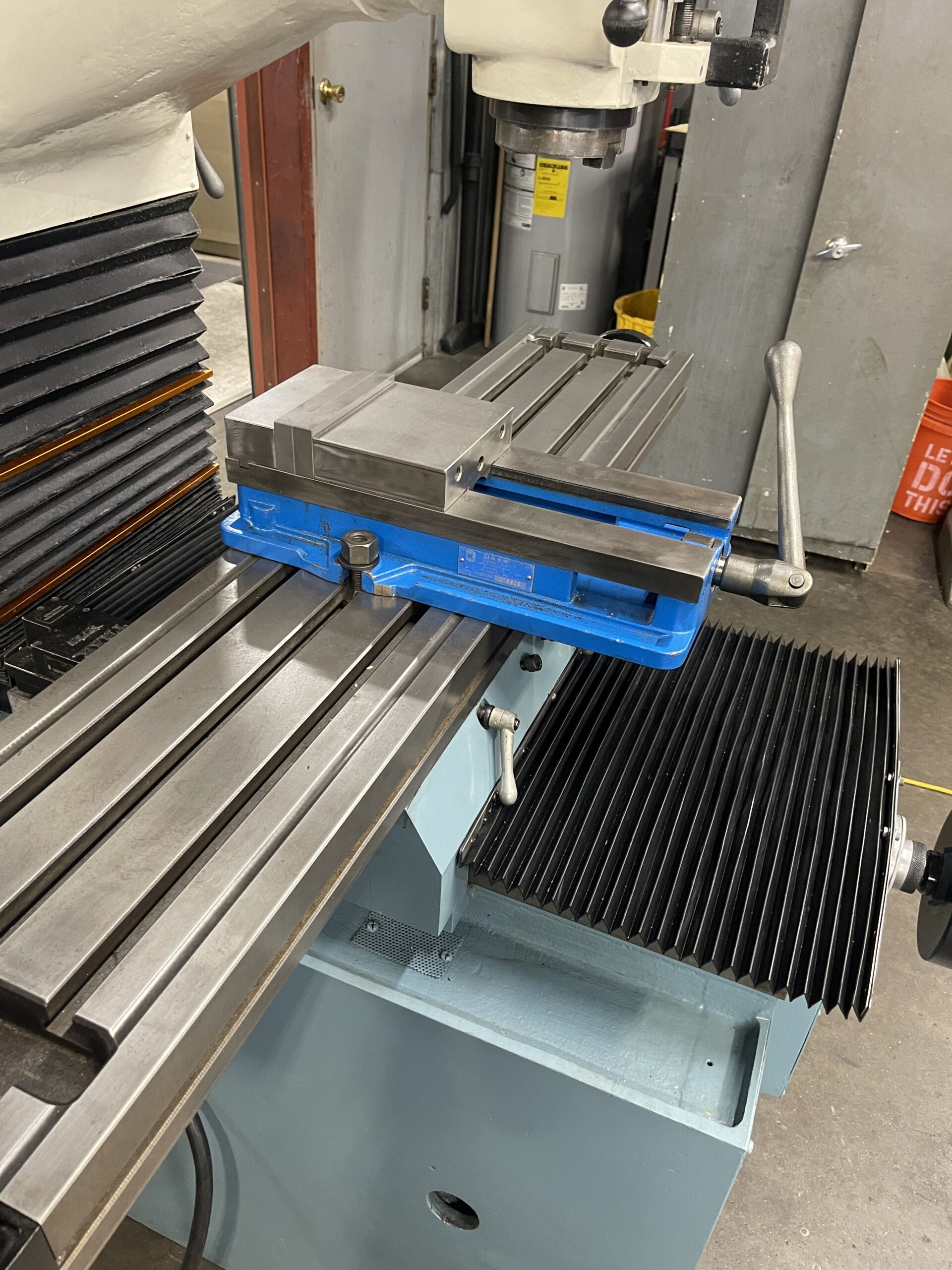

KURT 6″ Vice
Tooling Package. See picture

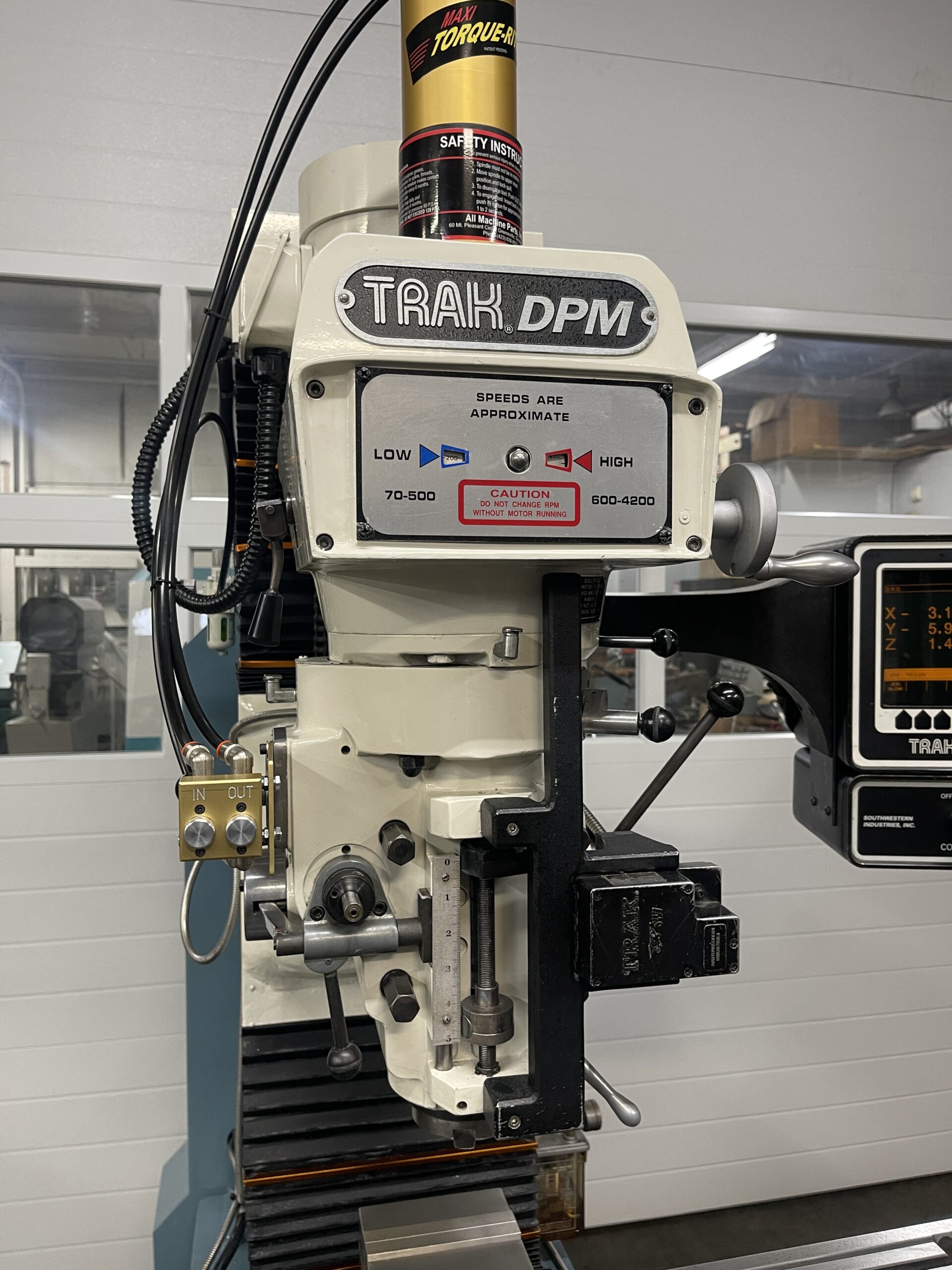

Reconditioned Head, Many New Parts. Smooth Operation.

Control and CNC Just Calibrated. Nice machine.

Condition: SUPERB – Control, Computer and Servos 3 Month Warrantee.
